Adjusting the Headlamps
Vertical Aim
Headlamp Aim Target
A 8 ft (2.4 m).B Center height of lamp to ground.C 25 ft (7.6 m).D Horizontal reference line. |
Vertical Aim Adjustment
- Park your vehicle on a level surface approximately 25 ft (7.6 m) away from a vertical wall or screen.
- Apply the parking brake.
- Measure the height from the center of the headlamp to the ground.
Note:
There may be an identifying mark on the lens to help you locate the center of the headlamp bulb.
- Mark a horizontal reference line on the vertical wall or screen that is a minimum of 8 ft (2.4 m) long.
- Switch the low beam headlamps on and open the hood.
- There is a distinct change from light to dark in the right-hand portion of the headlamp beam pattern. Position the top edge of this cut-off at the horizontal reference line.

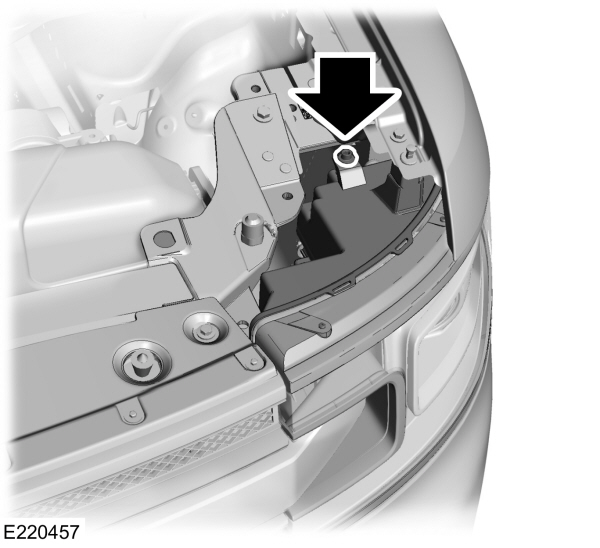

- To adjust the vertical aim, use a suitable tool to rotate the adjuster clockwise or counterclockwise.
Note:
To see a clearer light pattern while adjusting one headlamp, block the light from the other headlamp.
- Close the hood and switch the low beam headlamps off.
Horizontal Aim Adjustment
Horizontal aim is not adjustable on your vehicle.
