Capacities and Specifications - 6.7L Diesel
If you use oil and fluids that do not meet the defined specification and viscosity grade, this may lead to:
Capacities
WARNING:
The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury. |
| Item | Capacity |
|---|---|
| Engine oil (includes filter change) | 13.0 qt (12.3 L) |
| Engine coolant (primary high-temperature cooling system loop) | 35.1 qt (33.2 L)1 |
| Engine coolant (secondary cooling system) | 15.1 qt (14.3 L)1 |
| Brake fluid | Between MIN and MAX on brake fluid reservoir |
| Front axle | 2.7 qt (2.6 L) |
| Rear axle-10.5 inch (E-Locker) | 3.3–3.5 qt (3.1–3.3 L) |
| Rear axle-10.5 inch (non E-Locker) | 3.5–3.6 qt (3.3–3.4 L) |
| Rear axle- Dana M275 | 3.61 qt (3.42 L) |
| Rear axle- Dana M300 | 3.78 qt (3.58 L)2 |
| Automatic transmission fluid3 | 17.4 qt (16.5 L)4 |
| Transfer case fluid | 1.9 qt (1.8 L) |
| Windshield washer fluid | Fill as required |
| Fuel Tank (142 inch and 148 inch wheelbase, middle location) | 29.0 gal (109.8 L) |
| Fuel Tank (160 inch and 164 inch wheelbase, middle location) | 34.0 gal (128.7 L) |
| Fuel Tank (176 inch wheelbase, middle location) | 48 gal (181.7 L) |
| Fuel tank (incomplete vehicle, middle location) | 26.5 gal (100.3 L) |
| Fuel tank (incomplete vehicle, Aft- axle -location) | 40.0 gal (151.4 L) |
| Fuel tank (incomplete vehicle, Middle and Aft- axle -locations) | 66.5 gal (251.7 L) |
| Diesel Exhaust Fluid (DEF) (complete vehicle) | 7.4 gal (28 L) |
| Diesel Exhaust Fluid (DEF) (incomplete vehicle) | 7.2 gal (27.3 L) |
| A/C refrigerant | 27 oz (0.77 kg) |
| A/C refrigerant compressor oil | 3.4 fl oz (100 ml) |
1Use the coolant type originally equipped in your vehicle. Using any other coolant may result in vehicle damage.
2For complete refill of limited slip axles add 7.1 fl oz. (210 ml) of Additive Friction Modifier XL-3 or equivalent meeting Specification EST-M2C118-A. The total lube volume of 3.78 qt (3.58 L) includes the added friction modifier.
3 Approximate dry fill capacity. Actual amount may vary during fluid changes.
4Capacities may be higher if the vehicle is equipped with a cooler. Always check to make sure the fluid level is in the acceptable range.
Specifications
Materials
| Name | Specification |
|---|---|
| Motor oil (U.S.):5 Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil XO-10W30-QSD | WSS-M2C171-F1 |
| Motor oil (Canada):5 Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil CXO-10W30-LSD12 | WSS-M2C171-F1 |
| Engine and secondary cooling system coolant (U.S.): Motorcraft® Yellow Prediluted Antifreeze/Coolant VC-13DL-G | WSS-M97B57-A2 |
| Engine and secondary cooling system coolant (Canada): Motorcraft® Yellow Prediluted Antifreeze/Coolant CVC-13DL-G | WSS-M97B57-A2 |
| Diesel Exhaust Fluid (DEF): Motorcraft® Diesel Exhaust Fluid PM-27-Gal / PM-27-Jug | WSS-M99C130-A |
| Cetane Booster & Performance Improver (U.S.): Motorcraft® Cetane Booster & Performance Improver PM-22-A | - |
| Cetane Booster & Performance Improver (Canada): Motorcraft® Cetane Booster & Performance Improver PM-22-B | - |
| Anti-Gel & Performance Improver (U.S.): Motorcraft® Anti-Gel & Performance Improver PM-23-A | - |
| Anti-Gel & Performance Improver (Canada): Motorcraft® Anti-Gel & Performance Improver PM-23-B | - |
| Brake fluid: Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid PM-20 | WSS-M6C65-A2 |
| Front axle fluid: Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL | WSP-M2C197-A |
| Rear axle fluid (10.50 inch axle) (E-Locker/non E-Locker): Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL | WSS-M2C942-A |
| Rear axle fluid (Dana M275) (U.S.): Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL | WSL-M2C192-A |
| Rear axle fluid (Dana M275) (Canada): Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant CXY-75W140-1L | WSL-M2C192-A |
| Rear axle fluid (Dana M300) (U.S.): Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-80W90-QL | WSL-M2C192-A |
| Rear axle fluid (Dana M300) (Canada): Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant CXY-80W90-1L | WSL-M2C192-A |
| Friction Modifier: Motorcraft® Additive Friction Modifier XL-3 | EST-M2C118-A |
| Automatic transmission fluid (U.S.): Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC | WSS-M2C938-A MERCON® LV |
| Automatic transmission fluid (Canada): Motorcraft® MERCON® LV Automatic Transmission Fluid CXT-10-QLVC | WSS-M2C938-A MERCON® LV |
| Transfer case fluid (U.S.): Motorcraft® Transfer Case Fluid XT-10-QLVC | WSS-M2C938-A MERCON® LV |
| Transfer case fluid (Canada): Motorcraft® Transfer Case Fluid CXT-10-LV12 | WSS-M2C938-A MERCON® LV |
| Power steering fluid: Motorcraft® MERCON® LV XT-10-QLVC | WSS-M2C938-A MERCON® LV |
| Spindle bearing: High Temperature 4x4 Front Axle and Wheel Bearing Grease XG-11 | WSS-M2C192-A |
| Windshield washer fluid (U.S.): Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2 | WSS-M14P19-A |
| Windshield washer fluid (Canada): Motorcraft® Premium Quality Windshield Washer Fluid CXC-37-(A, B, D, F) | WSS-M14P19-A |
| A/C refrigerant (U.S.): Motorcraft® R-134a Refrigerant YN-19 | WSH-M17B19-A |
| A/C refrigerant (Canada): R-134a Refrigerant CYN-19-R | WSH-M17B19-A |
| A/C refrigerant compressor oil: Motorcraft® PAG Refrigerant Compressor Oil YN-12-D | WSH-M1C231-B |
| Multi-purpose grease: Motorcraft® Multi-Purpose Grease Spray XL-5-A | ESB-M1C93-B |
| Lock cylinders (U.S.): Penetrating and Lock Lubricant XL-1 | - |
| Lock cylinders (Canada): Penetrating Fluid CXC-51-A | - |
| Transmission, parking brake linkages and pivots, brake pedal shift: Motorcraft® Premium Long-Life Grease XG-1-E | WSD-M1C227-A |
5See the SAE viscosities grades chart for correct temperature usage.
- Component damage which is not covered by your vehicle warranty.
- Longer engine cranking periods.
- Increased emission levels.
- Reduced engine performance.
- Reduced fuel economy.
- Reduced brake performance.
Note:
An engine block heater is recommended at temperatures below –10°F (–23°C).
Engine Oil Specifications
The use of correct oil viscosities for diesel engines is important for satisfactory operation. Determine which oil viscosity best suits the temperature range you expect to encounter for the next service interval from the following SAE viscosity grade chart.
- (1) For severe duty service, use SAE 5W-40 API CK-4.
- (2) For biodiesel fuel blends (B20 max), use SAE 5W-40 or SAE 15W-40 API CK-4.

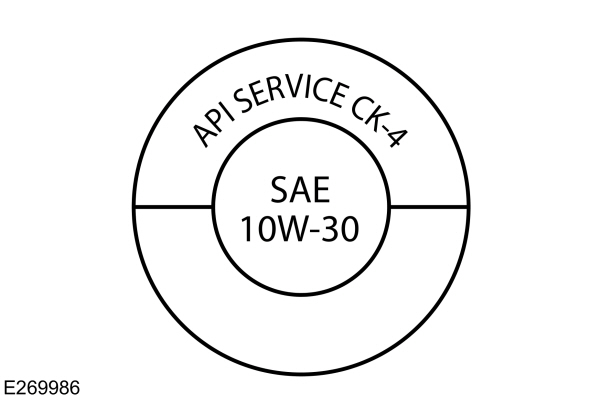

The American Petroleum Institute (API) service symbol is used to identify the proper engine oil for your engine. The API service symbol will be displayed on the oil container you purchase. The API symbol displays the oil performance category in the top half of the symbol and the viscosity grade in the center of the symbol.
