WARNING   WARNING:  Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.

Various systems on your vehicle can be controlled using the information display controls on the steering wheel. Corresponding information is displayed in the information display.
Note:   Some options may appear slightly different or not at all if the items are optional.
Note:   Trailer options are not available if your vehicle speed is greater than 3 mph (5 km/h).
Note:   Some MyKey menu options only appear if MyKey is enabled and at least one MyKey is programmed.
Check Box Icon  This icon gives you the ability to switch a feature on or off. A check in the box indicates the feature is enabled, and unchecked indicates the feature is disabled.
Information Display Controls (Type 1 and 2) (If Equipped)

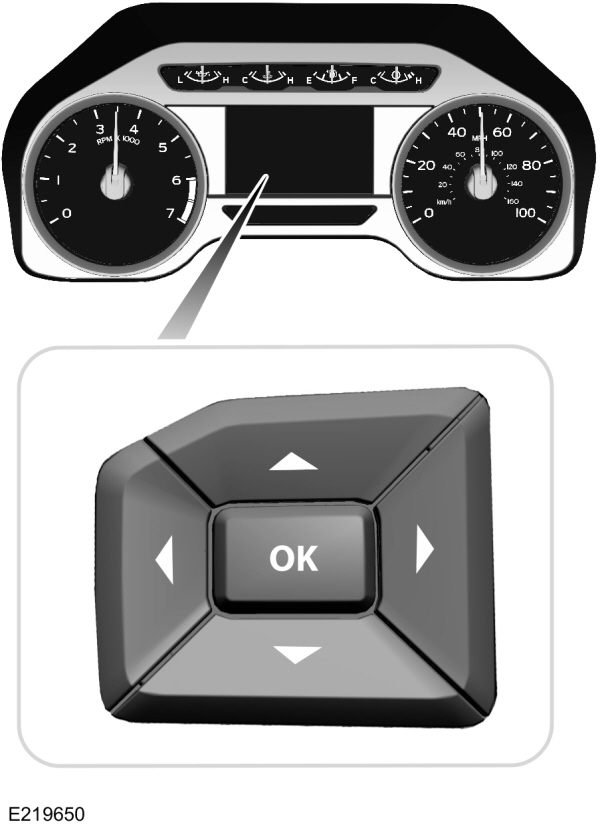

Information Display Control
  • Press the up and down arrow buttons to scroll through and highlight the options within a menu.
  • Press the right arrow button to enter a sub-menu.
  • Press the left arrow button to exit a menu.
  • Press the OK button to choose and confirm a setting or messages.
Type 1

Main Menu
Trip 1
Trip 2
Fuel Economy
Driver Assist
Settings


Trip 1
Digital Speed
Trip Odometer
Trip Timer
DTE
Average Fuel
Outside Temp

  • Digital Speed - Shows a digital display of your vehicle speed.
  • Trip Odometer - Registers the mileage of individual trips.
  • Trip Timer - Registers the time of individual trips.
  • DTE - Shows the approximate distance your vehicle can travel before running out of fuel.
  • Average Fuel - Shows the average fuel economy for a given trip.
  • Outside Air - Shows the outside air temperature.
Note:   Press and hold OK to reset values.
Note:   Trip 2 information is the same as Trip 1.

Fuel Economy
Distance to E
Instant Fuel Economy
Average Fuel Economy

  • Distance to E - Shows the approximate distance your vehicle can travel before running out of fuel.
  • Instant Fuel Economy - Shows your instantaneous fuel usage.
  • Average Fuel Economy - Shows the average fuel usage based on time.
  • Average Speed - Shows the average speed the vehicle has driven.
Note:   Press and hold OK to reset values.

Driver Assist
DEF Gauge
DEF Status
Exhaust Filter
Engine Hours
Engine Hours
Engine Idle
Dual Fuel Tank
Front Tank
Rear Tank
Hill Strt Asst.
Oil Temp
Oil Temp
Tire Pressure
Trans. Temp.
Rear Park Aid
Tr Brake Type   Select Your Setting
Tr Brake Effort
Trailer Sway


Settings
Vehicle
A. Engine Off
Auto Regen
DTE Calculate
Select Your Setting
Lighting
Autolamp Delay
Select Your Setting
Daytime Light
Locks
Autolock
Autounlock
Remote Unlock
Select Your Setting
Oil Life Reset
Follow onscreen directions to confirm or modify your settings
Alarm
Select Your Setting

Ask on Exit
Remote Start
Climate Control
Select Your Setting
Seats
Duration
System
Windows
Remote Open
Wiper Controls
Courtesy Wipe
MyKey
MyKey Status
Shows information related to the configured MyKey(s).
Create MyKey
Follow onscreen directions to confirm or modify your settings.
911 Assist
Select Your Setting
Do Not Disturb
AdvanceTrac
Max Speed
Speed Minder
Vol. Limiter
Clear MyKeys
Follow onscreen directions to confirm or modify your settings.
Display Setup
Units
Select Your Setting
Temperature
Language
Tire Pressure

Type 2

Main Menu
Display Mode
Trip/Fuel
Towing
Off Road
Settings


Display Mode
DTE
Dual Fuel Tanks
DEF Gauge
DEF Status
Exhaust Filter Status
Tire Pressure
Digital Speedometer
Engine Information
Transmission Temp.

  • DTE - Shows the approximate distance your vehicle can travel before running out of fuel.
  • Dual Fuel Tanks - Shows the distance to empty for the front and rear tanks.
  • DEF Gauge - Shows DEF gauge graphic.
  • DEF Status - Shows DEF status on demand screen.
  • Exhaust Filter - Shows exhaust filter on demand screen.
  • Tire Pressure - Shows the tire pressure in psi.
  • Digital Speedometer - Shows a digital display of your vehicle speed.
  • Engine Information - Shows engine hours, engine idle hours and oil temperature.
  • Transmission Temperature - Shows the transmission temperature value.

Trip/Fuel
Trip 1
Trip 2
Fuel Economy
Fuel History
Compass
Select Your Setting
Average Speed

Trip 1 or 2
  • Shows the time, mileage and average fuel economy of an individual journey. Also shows DTE.
Fuel
  • Fuel Economy - Shows your instantaneous fuel usage as a bar graph, average mpg and DTE.
  • Fuel History - Shows your fuel usage based on time. The graph is updated each minute with the fuel economy that you achieved during 30 minutes of driving. Also shows DTE.
Note:   Press and hold OK to reset values.
Note:   Once you select a trailer, it remains active until you set it as no longer active. An active trailer still accumulates miles even after you physically disconnect it from your vehicle.

Towing
Trailer Status
Trailer Status
Provides trailer status information for the active trailer: Trailer Blind Spot status, Trailer Reverse Guidance status, trailer name, accumulated trailer miles, trailer brake gain and output.
Trailer Light Check
Provides status of the brake, park and direction indicator light for the active trailer.
Trailer Tire Pressure
Displays the trailer tire pressure and options to customize the display.
Trailer Options
Trailer Sway Control
Select Trailer
Change Trailer Settings
Rename Trailer
Follow onscreen directions to confirm or modify your settings.
Reset Trailer Distance
Change Blind Spot Measure
Add Trailer Blind Spot
Change Trailer Sticker
Add Trailer Rev. Guidance
Change Brake Type
Select Your Setting
Change Brake Effort

Delete Trailer
Change Trailer Setup
Select Your Setting

Add Trailer
Add Trailer
Trailer Brake Type
Select Your Setting
Trailer Brake Effort
Change Trailer Setup
Follow onscreen directions to confirm or modify your settings.
Trailer Rev. Guidance

Connection Checklist
Conventional
Fifth Wheel
Gooseneck


Off Road
Off Road Status

Displays pitch, steering angle and roll.

Settings
Auto Regen
Blind Spot
Cross Traffic Alert
DTE Calculation
Select Your Setting
Rear Park Aid
Trailer Blind Spot
Advanced Settings
Vehicle
Auto Engine Off
Easy Entry/Exit
Lighting
Autolamp Delay
Select Your Setting
Daytime Lights
Locks
Autolock
Autounlock
Remote Unlock
Select Your Setting
Remote Start
Climate Control
Seats

Duration
System

Oil Life Reset
Follow onscreen directions to confirm or modify your settings.
Alarm
Select Your Setting
Ask on Exit
Windows
Remote Open
Remote Close
Wiper Controls
Courtesy Wipe
Rain Sensing

MyKey
MyKey Status
Create MyKey
Follow onscreen directions to confirm or modify your settings.
911 Assist
Select Your Setting

Do Not Disturb
AdvanceTrac
Max Speed
Speed Minder
Volume Limiter
Clear MyKeys
Follow onscreen directions to confirm or modify your settings.
Display Setup
Units
Select Your Setting
Temperature
Tire Pressure
Language

Information Display Controls (Type 3) (If Equipped)

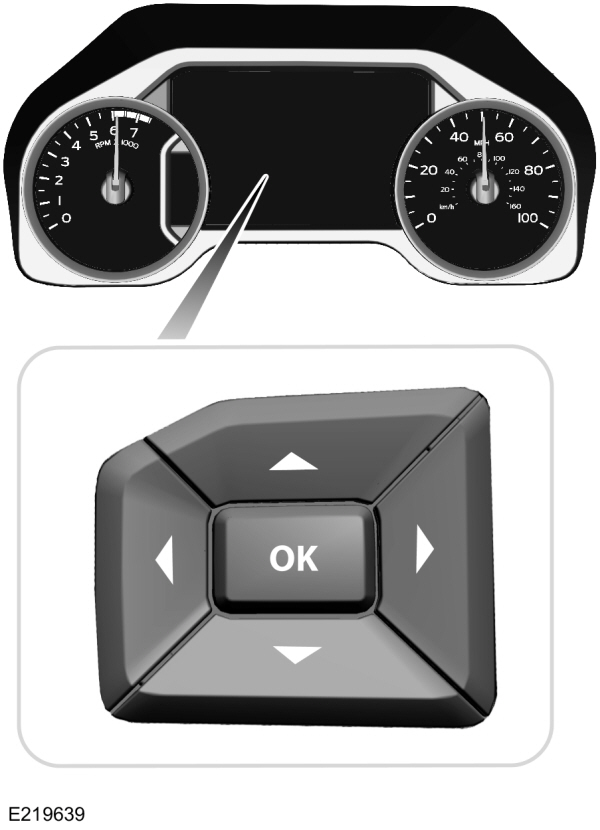

Information Display Control
  • Press the up and down arrow buttons to scroll through and highlight the options within a menu.
  • Press the right arrow button to enter a sub-menu.
  • Press the left arrow button to exit a menu.
  • Press the OK button to choose and confirm a setting or messages.
Type 3

Main Menu
MyView
Trip/Fuel
Truck Info
Towing
Off Road
Settings


MyView
Trip 1
Fuel Economy
Tire Pressure
Off Road Status
Configure MyView
Add/Remove Screens
Trip/Fuel Screens
Trip 1
Trip 2
Fuel Economy
Fuel History
Average Speed
Navigation/Compass
Truck Info Screens
Turbo Boost
Transmission Temp
Trans. Temp. Gauge
Diesel Particulate Filter

Diesel Exhaust Fluid
Gauge View
Tire Pressure
Digital Speedometer
Engine Information

MyKey Status
Towing Screens
Towing Status
Towing Information
Trailer Light Check
Off Road Screens
Off Road Status
Reorder Screens
Screen Selection 1 - 7   Up/Down moves selection in the list
Press OK to select

  • Trip 1/2 - Shows your trip timer, fuel used, trip odometer and average mpg.
  • Fuel Economy - Shows your instantaneous fuel usage and average mpg.
  • Tire Pressure - Shows your car outline with tire pressure values.
  • Off Road Status - Shows your pitch and roll screen.

Trip/Fuel
Trip 1
Trip 2
Fuel Economy
Fuel History
Navigation/Compass
Compass
Select Your Setting

Trip 1 or 2
  • Trip Timer - Registers the time of individual journeys.
  • DTE - Shows the approximate distance your vehicle can travel before running out of fuel.
  • Odo - Registers the mileage of individual journeys.
  • Avg mpg - Shows the average fuel economy for a given trip.
Fuel
  • Fuel Economy - Shows your instantaneous fuel usage as a bar graph and average mpg.
  • Fuel History - Shows your fuel usage based on time. The graph is updated each minute with the fuel economy that you achieved during 30 minutes of driving.
Navigation/Compass
  • Navigation - Shows navigation turn by turn (Compass displayed when a route in Navigation is not set).

Truck Info
Turbo Boost Gauge
Gauge View
Transmission Temperature Gauge
Diesel Exhaust Fluid Gauge
Tire Pressure
Digital Speedometer
Diesel Exhaust Fluid Status
Diesel Particulate Filter Status
Dual Fuel Tanks
Engine Information
Transmission Temperature

  • Turbo Boost Gauge - Shows the turbo boost gauge.
  • Transmission Temperature Gauge - Shows the transmission temperature gauge.
  • Diesel Exhaust Fluid Gauge - Shows diesel exhaust fluid gauge.
  • Tire Pressure - Shows the tire pressure in psi.
  • Digital Speedometer - Shows a digital display of your vehicle speed.
  • Diesel Exhaust Fluid Status - Shows the diesel exhaust fluid status.
  • Diesel Particulate Filter Status - Shows the diesel particulate filter status.
  • Dual Fuel Tanks - Shows the front and rear fuel tank gauges.
  • Engine Information - Shows engine hours, engine idle hours and oil temperature.
  • Transmission Temperature - Shows the transmission temperature value.
Note:   Once you select a trailer, it remains active until you set it as no longer active. An active trailer still accumulates miles even after you physically disconnect it from your vehicle.

Towing
Towing Status
% Grade, steering angle, gain and output display
Towing Information
Trailer Name, Accumulated Miles, Trailer Reverse Guidance Status, Trailer BLIS Status and Trailer Disconnected
Trailer Light Check
Provides status of the brake, park and direction indicator light for the active trailer.
Trailer Tire Pressure
Follow onscreen directions to confirm or modify your settings.
Trailer Setup
Trailer Sway Control
Select trailer
Select Your Trailer
Change Trailer Settings
Rename Trailer
Follow onscreen directions to confirm or modify your settings.
Reset Trailer Distance
Change Blind Spot Measurement

Add Blind Spot
Change Reverse Guidance Sticker
Add Trailer Reverse Guidance™
Change Brake Type
Change Brake Effort
Delete Trailer
Change Trailer Setup
Add Trailer
Trailer Brake Type
Select Your Setting
Trailer Brake Effort
Trailer Setup
Follow onscreen directions to confirm or modify your settings.
Connection Checklist
Conventional
Follow onscreen directions to confirm or modify your settings.
Fifth Wheel
Gooseneck


Off Road
Off Road Status

Displays pitch, steering angle, roll, Elocker and 4X4.

Settings
Auto Highbeam
Auto Regen
Blind Spot
Cross Traffic Alert
Driver Alert
Rear Park Aid
Trailer Blind Spot
Pre-Collision
Alert Sensitivity
Select Your Setting
Pre-Collision - On
Cruise Control
Select Your Setting
DTE Calculation
Gauge Selection
Lane Keeping System
Mode
Select Your Setting
Sensitivity
Alert Intensity
Advanced Settings
Vehicle
Auto Engine Off
Easy Entry/Exit
Lighting
Autolamp Delay
Select Your Setting
Daytime Lights
Locks
Autolock
Autounlock
Remote Unlock
Select Your Setting

Oil Life Reset
Follow onscreen directions to confirm or modify your settings.
Alarm
Select Your Setting

Ask on Exit

Power Running Boards
Select Your Setting

Remote Start
Climate Control
Select Your Setting

Front Seats & Wheel

Duration

System
Windows
Remote Open

Wiper Controls
Courtesy Wipe
Rain Sensing

MyKey
MyKey Status
Shows information related to the configured MyKey(s)
Create MyKey
Follow onscreen directions to confirm or modify your settings.
911 Assist
Select Your Setting

Do Not Disturb
AdvanceTrac
Max Speed
Speed Minder
Volume Limiter
Clear MyKeys
Follow onscreen directions to confirm or modify your settings.
Display Setup
Units
Select Your Setting
Temperature
Tire Pressure
Language

Owner's Manual Feedback

  • Please note that Ford will not respond to individual feedback.
  • Please only provide detailed feedback regarding any inaccuracies in the content or any missing content in the Owner's Manual.
  • Your feedback will be investigated, and any necessary changes will be updated in the online Owner's Manual.
  • Please do not submit any vehicle related feedback. To submit feedback related to your vehicle, please click the link to find the correct contact information for your market.
View Contact Information

Submit

Your input is valuable in helping us improve our Owner's Manual. Thank you for taking the time to provide your feedback.

Ok

Contact Information

North America

CountryPhoneEmail
United States1-800-392-3673 (FORD)
Canada1-800-565-3673 (FORD)
Mexico1-800-719-8466
Guam1-800-392-3673 (FORD)
North Mariana Islandsapemcrc@ford.com
Puerto Rico(800) 841-3673prcac@ford.com
US Virgin Islands(800) 841-3673prcac@ford.com


CountryPhoneEmail
Algerianafcrc@ford.com
Angolassacrc@ford.com
Beninssacrc@ford.com
Botswanassacrc@ford.com
Burkina FASOssacrc@ford.com
Burundissacrc@ford.com
Cameroonssacrc@ford.com
Cape Verdessacrc@ford.com
Central African Republicssacrc@ford.com
Chadssacrc@ford.com
Comorosssacrc@ford.com
Dem Republic of Congossacrc@ford.com
Djibutissacrc@ford.com
Egyptnafcrc@ford.com
Equitorial Guineassacrc@ford.com
Eritreassacrc@ford.com
Ethiopiassacrc@ford.com
Gabonssacrc@ford.com
Gambiassacrc@ford.com
Ghanassacrc@ford.com
Guineassacrc@ford.com
Guinea-Bissaussacrc@ford.com
Ivory Coastssacrc@ford.com
Kenyassacrc@ford.com
Liberiassacrc@ford.com
Libyanafcrc@ford.com
Madagascarssacrc@ford.com
Malawissacrc@ford.com
Mauritaniassacrc@ford.com
Mauritiusssacrc@ford.com
Morocconafcrc@ford.com
Mozambiquessacrc@ford.com
Namibiassacrc@ford.com
Nigerssacrc@ford.com
Nigeriassacrc@ford.com
Republic of Congossacrc@ford.com
Rwandassacrc@ford.com
Sao Tome and Principessacrc@ford.com
Senegalssacrc@ford.com
Sychellesssacrc@ford.com
Sierra Leonessacrc@ford.com
South Africa860011022fordcrc2@ford.com
South Sudanssacrc@ford.com
Swazilandssacrc@ford.com
Tanzaniassacrc@ford.com
Togossacrc@ford.com
Tunisianafcrc@ford.com
Ugandassacrc@ford.com
Zambiassacrc@ford.com
Zimbabwessacrc@ford.com
American Somoaapemcrc@ford.com
Australia(13 FORD) 13 3673foacust1@ford.com
Bangladeshapemcrc@ford.com
Bhutanapemcrc@ford.com
Bruneiapemcrc@ford.com
Cambodiaapemcrc@ford.com
Fijiapemcrc@ford.com
French Polynesiaapemcrc@ford.com
Indiaapemcrc@ford.com
Indonesiaapemcrc@ford.com
Japanapemcrc@ford.com
Laosapemcrc@ford.com
Macaoapemcrc@ford.com
Malaysiaapemcrc@ford.com
Marshall Islandsapemcrc@ford.com
Mongoliaapemcrc@ford.com
Myanmarapemcrc@ford.com
Nepalapemcrc@ford.com
New Caledoniaapemcrc@ford.com
New Zealand0800 367 369 (FORDNZ)fnzcust@ford.com
Pakistanapemcrc@ford.com
Palauapemcrc@ford.com
Papua New Guineaapemcrc@ford.com
Philippines02-88669408emailus@ford.com
Singaporeapemcrc@ford.com
South Korea82-2-1600-6003infokr1@ford.com
Sri Lankaapemcrc@ford.com
Tahitiapemcrc@ford.com
Thailand1383fordthai@ford.com
Timor Lesteapemcrc@ford.com
Vanuatuapemcrc@ford.com
Vietnam1800588888fordvn@ford.com
Wallis and Futunaapemcrc@ford.com
Western Somoaapemcrc@ford.com
Afghanistanmenacac@ford.com
Bahrainmenacac@ford.com
Iraqmenacac@ford.com
Israel08-9139995service1@kelekmotors.co.il
Jordanmenacac@ford.com
Kuwait965 1 898900menacac@ford.com
Lebanonmenacac@ford.com
Omanmenacac@ford.com
Qatarmenacac@ford.com
Saudi Arabia8008443673menacac@ford.com
Syriamenacac@ford.com
United Arab Emirates80004441066menacac@ford.com
Yemenmenacac@ford.com

Greater China

CountryPhoneEmail
China-Imported Vehicles400-690-1886
China-CAF951995
China-JMC400-003-1111
China-Lincoln400-988-6789
Taiwan0800-032100
Hong Kong(852) 3768-4898

South America

CountryPhoneEmail
Argentina0800-888-3673
BoliviaContact Your Local Ford Distributor
Brazil0800-703-3673central@ford.com
ChileContact Your Local Ford Distributor
ColombiaContact Your Local Ford Distributor
EcuadorContact Your Local Ford Distributor
French GuianaContact Your Local Ford Distributor
GuyanaContact Your Local Ford Distributor
ParaguayContact Your Local Ford Distributor
PeruContact Your Local Ford Distributor
SurinameContact Your Local Ford Distributor
UruguayContact Your Local Ford Distributor
VenezuelaContact Your Local Ford Distributor

Europe

CountryPhoneEmail
AlbaniaContact Your Local Ford Distributor
AndorraContact Your Local Ford Distributor
ArmeniaContact Your Local Ford Distributor
Austria01 20 609 2424kundenz@ford.com
AzerbaijanContact Your Local Ford Distributor
BelarusContact Your Local Ford Distributor
Belgium32 2 700 67 76custfobe@ford.com
BosniaContact Your Local Ford Distributor
BulgariaContact Your Local Ford Distributor
CroatiaContact Your Local Ford Distributor
CyprusContact Your Local Ford Distributor
Czech Republic800 3673 29zakaznik@ford.com
Denmark43 68 2000crcdk@ford.com
Estonia372 6710 060ford@infoauto.ee
Falkland IslandsContact Your Local Ford Distributor
Finland09 725 22022palvelut@ford.com
France0800 005 005 crcfr@ford.com
GeorgiaContact Your Local Ford Distributor
Germany0221 9999 2 999kunden@ford.com
GirbraltarContact Your Local Ford Distributor
Greece216 900 88 99 info11@ford.com
Hungary+36 1 7777 555Contact Your Local Ford Distributor
IcelandContact Your Local Ford Distributor
Ireland1800 771 199crcirela@ford.com
Italy800 22 44 33tu@ford.com
KazakhstanContact Your Local Ford Distributor
Latvia+371 67303020
LiechtensteinContact Your Local Ford Distributor
Lithuania370 5216 8226forduzklausos@inchcape.lt
Luxembourg+352 248 71 800custfobe@ford.com
MacedoniaContact Your Local Ford Distributor
MaltaContact Your Local Ford Distributor
MoldovaContact Your Local Ford Distributor
MonacoContact Your Local Ford Distributor
MontenegroContact Your Local Ford Distributor
Netherlands70 7703 777 klanten@ford.com
Norway47 66819739infonor@ford.com
Poland48 22 522 27 27kontakty@ford.com
Portugal800 210 373clientes@ford.com
Romania40 312298798crcro@ford.com
RussiaContact Your Local Ford Distributor
San MarinoContact Your Local Ford Distributor
SerbiaContact Your Local Ford Distributor
Serbia and MontenegroContact Your Local Ford Distributor
SlovakiaContact Your Local Ford Distributor
SloveniaContact Your Local Ford Distributor
South GeorgiaContact Your Local Ford Distributor
Spain900 80 70 90crcspain@ford.com
Sweden08-593 66 333fordkund@ford.com
Switzerland044 511 14 45assistch@ford.com
TurkeyContact Your Local Ford Distributor
UkraineContact Your Local Ford Distributor
United Kingdom020 3564 4444UKCRC1@ford.com

Caribbean and Central America

CountryPhoneEmail
Anguilla(313) 594-4857expcac@ford.com
Antigua(313) 594-4857expcac@ford.com
Aruba(313) 594-4857expcac@ford.com
Bahamas(313) 594-4857expcac@ford.com
Barbados(313) 594-4857expcac@ford.com
Bermuda(313) 594-4857expcac@ford.com
Bonaire and St. Eustatius(313) 594-4857expcac@ford.com
Cayman Islands(313) 594-4857expcac@ford.com
Curacao(313) 594-4857expcac@ford.com
Dominica(313) 594-4857expcac@ford.com
Dominican Republic(313) 594-4857expcac@ford.com
Grenada(313) 594-4857expcac@ford.com
Haiti(313) 594-4857expcac@ford.com
Jamaica(313) 594-4857expcac@ford.com
Martinique(313) 594-4857expcac@ford.com
Montserrat(313) 594-4857expcac@ford.com
St. Kitts and Nevis(313) 594-4857expcac@ford.com
St. Lucia(313) 594-4857expcac@ford.com
St. Martin(313) 594-4857expcac@ford.com
St. Vincent and the Grenadines(313) 594-4857expcac@ford.com
Trinidad and Tobago(313) 594-4857expcac@ford.com
Turks and Caicos(313) 594-4857expcac@ford.com
British Virgin Islands(313) 594-4857expcac@ford.com
Netherlands Antilles(313) 594-4857expcac@ford.com
Belize(313) 594-4857expcac@ford.com
Costa Rica(313) 594-4857expcac@ford.com
El Salvador(313) 594-4857expcac@ford.com
Guatemala(313) 594-4857expcac@ford.com
Honduras(313) 594-4857expcac@ford.com
Nicaragua(313) 594-4857expcac@ford.com
Panama(313) 594-4857expcac@ford.com
