Engine | 2.3L EcoBoost |
---|---|
Displacement. | 138 in³ (2,261 cm³) |
Fuel type. | Minimum 87 octane |
Firing order. | 1-3-4-2 |
Ignition system. | Coil on plug |
Spark plug gap. | 0.028–0.031 in (0.7–0.8 mm) |
Compression ratio. | 10:1 |

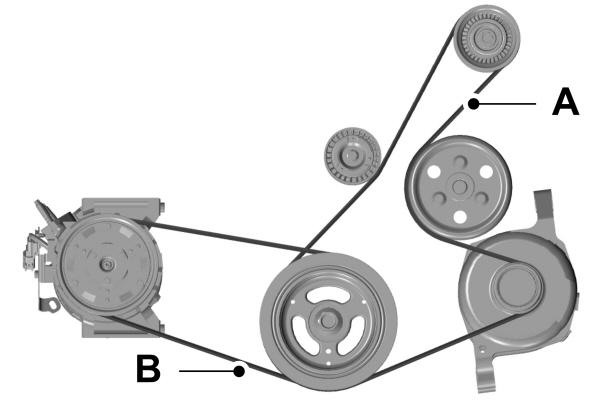

A.Long drivebelt is on first pulley groove closest to engine. B.Short drivebelt is on second pulley groove farthest from engine. |
