Wireless Accessory Charger (If Equipped)
WARNING:
Wireless charging devices can affect the operation of implanted medical devices, including cardiac pacemakers. If you have any implanted medical devices, we recommend that you consult with your physician. |
Note:
Devices without built-in Qi wireless charging receivers require an additional Qi receiver or sleeve.
Note:
For compatible devices with built-in Qi wireless charging capability, the charging performance may be affected if your device is in a case. It may be necessary to remove the case to wirelessly charge your device.
The system supports one Qi wireless charging compatible device on the charging area.
Keep the charging area clean and remove foreign objects prior to charging a device.
Do not place items with a magnetic strip, for example passports, parking tickets or credit cards, near the charging area when charging a device. Damage may occur to the magnetic strip.
Do not place metal objects, for example remote controls, coins and candy wrappers, on or near the charging area when charging a device. Metal objects may heat up and degrade the charging performance.
Note:
This device controls the rate of charge, or charging power. During charging, the device and the charger may heat up, this is normal. If the battery gets hotter than usual, the charger may stop charging.
The charging area is on the center console or lower instrument panel. See
Center Console.
You can charge a device if the vehicle is on, when in accessory, mode or when SYNC is on.

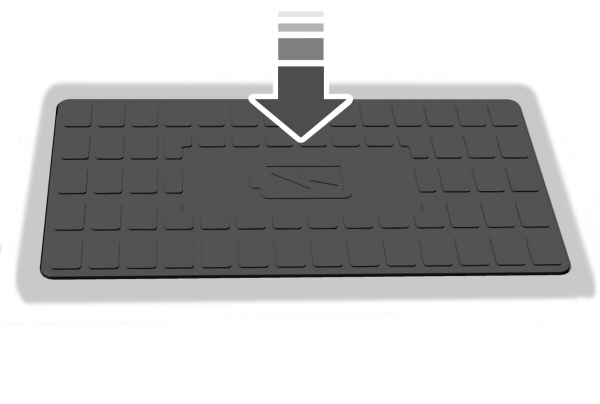

To begin charging, place the device on the center of the charging surface with the charging side down. The charging stops after your device reaches a full charge.
Note:
If the system detects a foreign object or if the device is misaligned on the charging area, a message appears in the display.
Note:
Software and firmware updates may affect device compatibility, including the use of unofficial software or firmware. Customers should verify charging functionality with their specific devices in-vehicle.
| Message | Behavior | Description |
|---|---|---|
Wireless Charger Active | Message on screen display or pop-up window. | This message appears when wireless charging begins. |
Charging Terminated | Pop-up window. | The system stops charging your device if the system detects the phone is misaligned, or a foreign metal object is on the charging surface. |
Phone misaligned or object between phone and charger detected. Correct the condition to resume charging. |
FCC ID: L2C0066T
This equipment has been tested and found to comply with part 18 of the FCC Rules.- This equipment generates, uses and can radiate radio frequency energy and may cause harmful interference to radio communications. There is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, please consult the dealer.
- This product is not end-user serviceable.
- This device may not cause interference, and
- This device must accept any interference, including interference that may cause undesired operation of the device.
Note:
Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC" before the radio certification number only signifies that Industry Canada technical specifications were met.
