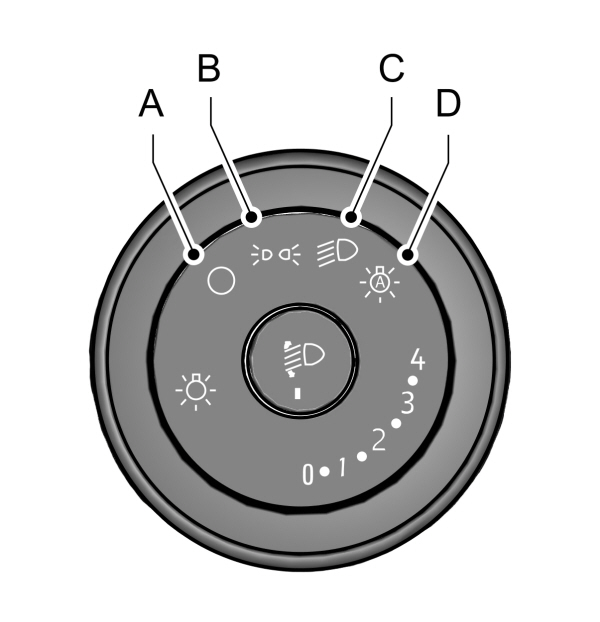

Lighting Control Positions
ALamps off. BParking lamps, instrument panel lamps and license plate lamps. CHeadlamps. DAutolamps. See
Autolamps.
|
Switching All of the Parking Lamps On
- Switch the ignition off.
- Set the lighting control to the parking lamps position.
Note:
Parking lamps could turn off to prevent the vehicle battery from running out of charge.

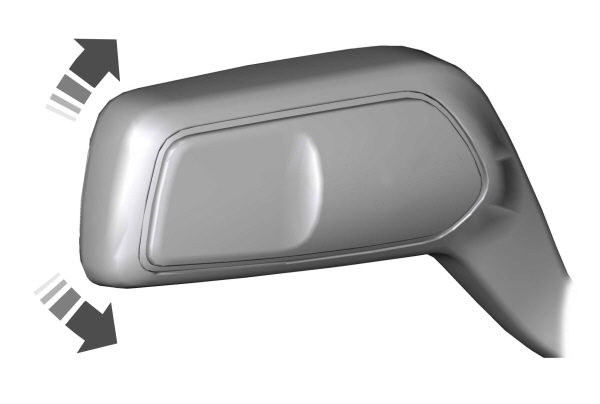

Switching the Left-Hand Side or the Right-Hand Side Parking Lamps On (If Equipped)
- Switch the ignition off.
- Push the lever up or down to switch the parking lamps on.
Note:
Parking lamps could turn off to prevent the vehicle battery from running out of charge.

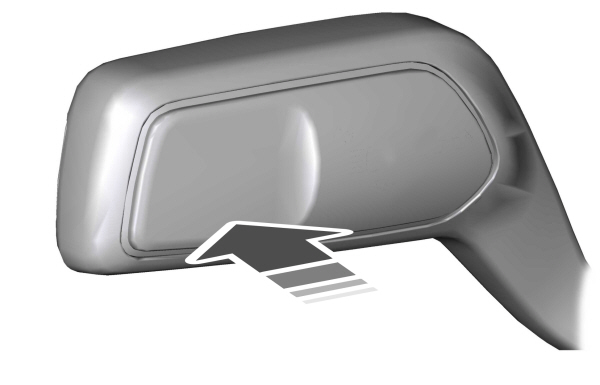

Switching High Beam Headlamps On and Off
Push the lever away from you to switch the high beam headlamps on.
Push the lever forward again or pull the lever toward you to switch the high beam headlamps off.
Note:
If you switch the autolamps on, you cannot switch the high beam headlamps on until the system turns the headlamps on.

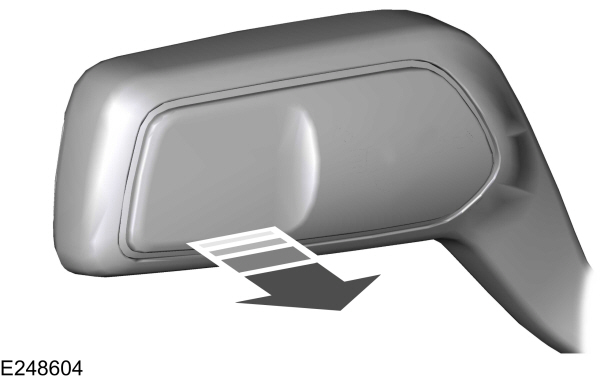

Flashing High Beam Headlamps
Pull the lever toward you and release it to flash the high beam headlamps.
High Beam Headlamp Indicator
It illuminates when you switch the high beam headlamps on. | |
Lamps On Indicator
It illuminates when you switch the low beam headlamps or the side and rear lamps on. | |
Low Beam Headlamp Warning Lamp (If Equipped)
If it illuminates when the low beam headlamps are on, this indicates that a low beam headlamp bulb has failed. | |
Exterior Lamps On Audible Warning
Sounds when you open the driver door and the exterior lamps are on.
Headlamps Information Messages
Message
| Description
|
---|
Check Headlamp System See manual | Displays if an electrical malfunction occurs with the headlamp system.Have your vehicle checked as soon as possible.
|
