Note:   Active guide lines and fixed guide lines are only available when the transmission is in reverse (R).
Note:   The centerline is only available if the active or fixed guide lines are on.

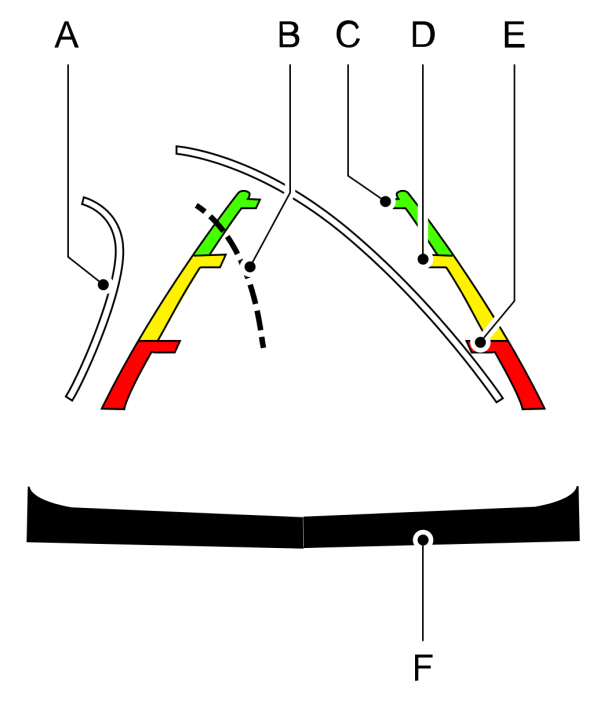

Colored Guidelines
  • Active guide lines.
  • Centerline.
  • Fixed guide line: Green zone.
  • Fixed guide line: Yellow zone.
  • Fixed guide line: Red zone.
  • Rear bumper.
Active guide lines only show with fixed guide lines. To use active guide lines, turn the steering wheel to point the guide lines toward an intended path. If the steering wheel position changes while reversing, your vehicle might deviate from the intended path.
The fixed and active guide lines fade in and out depending on the steering wheel position. The active guide lines do not display when the steering wheel position is straight.
Use caution while reversing. Objects in the red zone are closest to your vehicle and objects in the green zone are farther away. Objects get closer to your vehicle as they move from the green zone to the yellow or red zones. Use the side view mirrors and rear view mirror to get better coverage on both sides and rear of your vehicle.
