Installing and Removing the Luggage Compartment Cover

Remove the luggage compartment covers in the following order:

The rear luggage compartment cover.
The left-hand luggage compartment cover.
The right-hand luggage compartment cover.

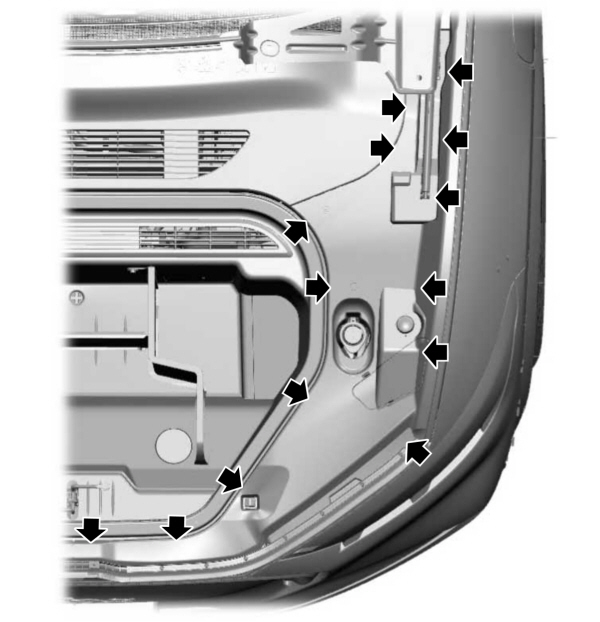

Removing the Rear Luggage Compartment Cover

Luggage Compartment Panel Removal and Installation

Start at the rear edge of the left-hand side.

Pull upward at the clip locations shown to release the clips.

Remove the cover.

To install, reverse the removal procedure.

Removing the Left-Hand Luggage Compartment Cover

Luggage Compartment Panel Removal and Install

Start at the rear edge of the left-hand side and work toward the front of the cover.

Pull upward at the clip locations shown to release the clips.

Remove the cover.

To install, reverse the removal procedure.

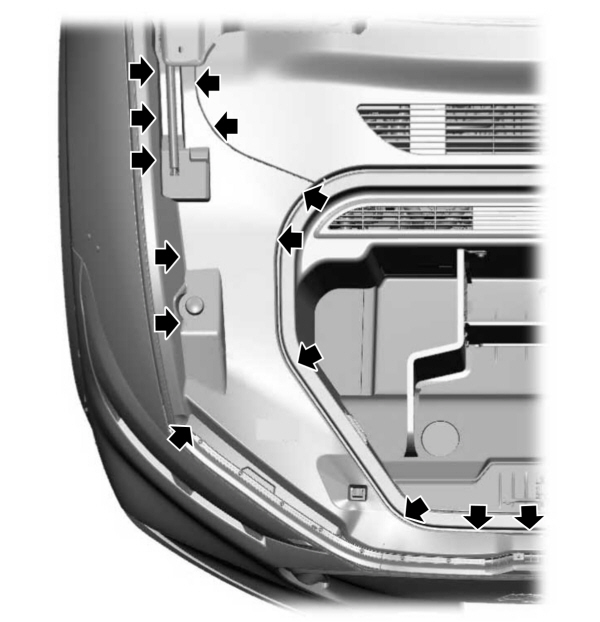

Removing the Right-Hand Luggage Compartment Cover

Start at the rear edge of the right hand-side and work toward the front of the cover.

Pull upward at the clip locations shown to release the clips.

Remove the cover.

To install, reverse the removal procedure.
