High Voltage Battery - Charge Port Indicators

This view of the Owner's Manual contains the very latest information, which may vary slightly from the printed Owner's Manual originally provided with your vehicle. It may also describe content that is not on or operates differently on your vehicle. Please consider the Owner's Manual originally provided with your vehicle as the primary source of information for your vehicle.

The information contained in this publication was correct at the time of release.In the interest of continuous development, we reserve the right to change specifications, design or equipment at any time without notice or obligation.No part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means without our written permission.Errors and omissions excepted.

Charge Port Indicators

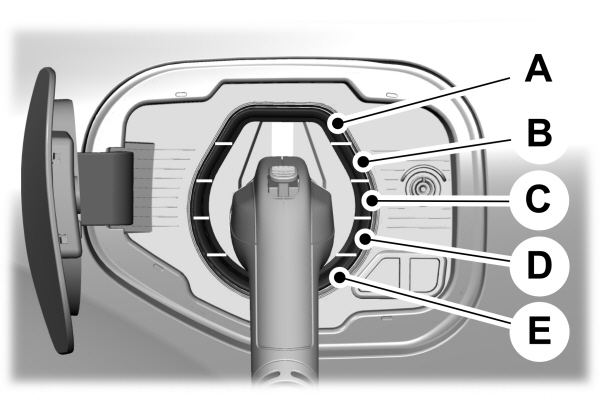

The indicators around the charge port are divided into five segments. They display the high voltage battery state of charge in 20 percent increments.

State of charge 80-100%.
B.

State of charge 60-80%.
C.

State of charge 40-60%.
D.

State of charge 20-40%.
E.

State of charge 0-20%.

Note: The charge port indicators flash blue to confirm you have correctly engaged the universal home charge cord coupler.

Note: If the charge port indicators illuminate red, there is a charging malfunction. Disconnect the universal home charge cord coupler, then connect it again to the charge port. If the charge port indicators still illuminate red, have your vehicle checked.

Note: If the charge port indicators flash red, there is a charging equipment malfunction. Disconnect the universal home charge cord coupler, then connect it again to the charge port. If the charge port indicators still flash red, try another universal home charge cord or charging station.
