Interior Lamps
The lamps turn on under the following conditions:
- You open any door.
- You press a remote-control button.
- You press button A on the front interior lamp.
Front Interior Lamps
Note:
The front interior lamp switches are on the overhead console. The exact location of each button on the overhead console depends upon your vehicle features.
Note:
Press the button to switch the door function off when you open any door. When the door function is off and you open a door, the courtesy and door lamps stay off. The indicator lamp lights amber when the door function is off.
Note:
Press the button again to switch the door function back on. When the door function is on and you open a door, the courtesy and door lamps turn on. The indicator lamp lights blue when the door function is on.

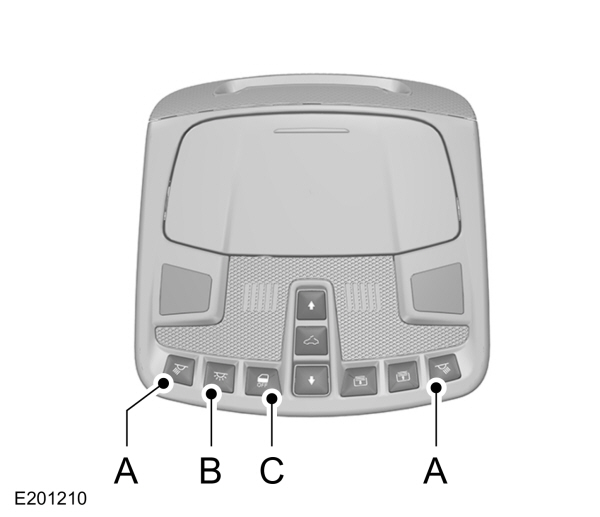

With Moonroof

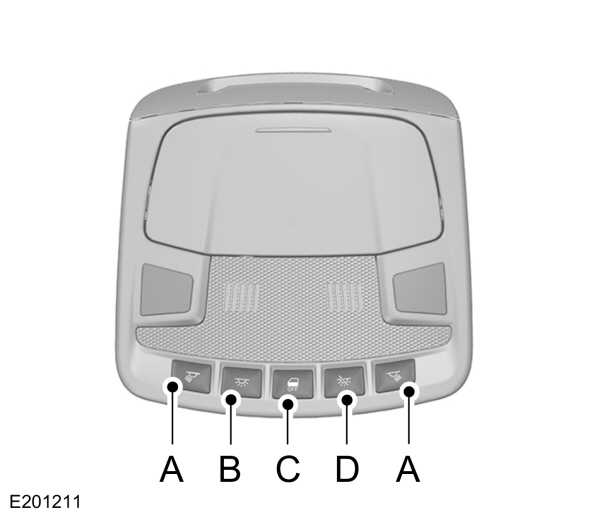

Without Moonroof
A Individual map lamps.B All lamps on.C Door function.D All lamps off. |
Note:
You can switch individual map lamps on independently by pressing a map lens.

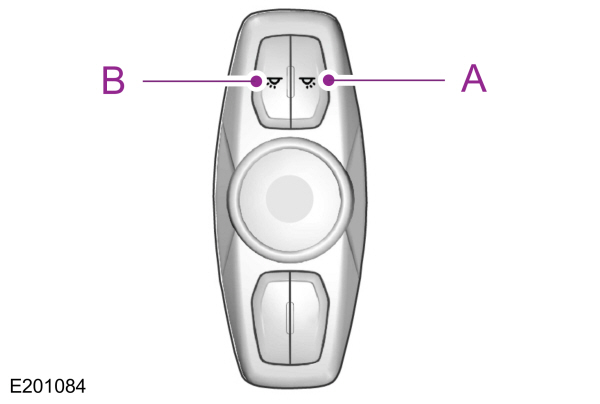

Rear Interior Lamps
2nd Row Seats
With Moonroof

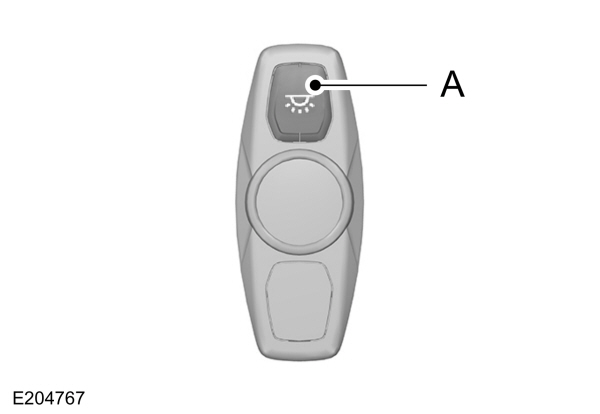

Without Moonroof
| AIndividual map lamps. |

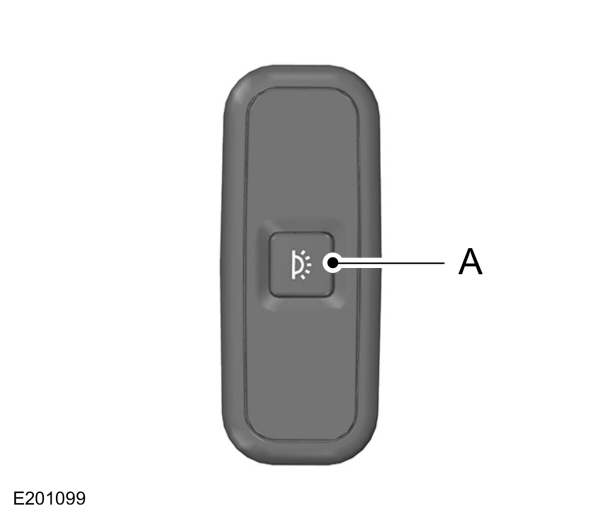

3rd Row Seats
| ADome lamps. |
Glove Box Lamp
The glove box lamp turns on when you open it.
Cargo Compartment Lamp
The cargo compartment lamp turns on when you open the rear liftgate.
