12 Volt DC Power Point
WARNING   WARNING:  Do not use a power point for operating a cigar lighter. Incorrect use of the power points can cause damage not covered by the vehicle warranty, and can result in fire or serious injury.

Note:   When you switch the ignition on, you can use the socket to power 12 volt appliances with a maximum current rating of 15 amps.If the power supply does not work after you switch the ignition off, switch the ignition on.
Note:   Do not hang any accessory from the accessory plug.
Note:   Do not use the power point over the vehicle capacity of 12 volt DC 180 watts or a fuse may blow.
Note:   Always keep the power point caps closed when not in use.
 Do not insert objects other than an accessory plug into the power point.This damages the power point and may blow the fuse.
Run the vehicle for full capacity use of the power point.
To prevent the battery from running out of charge:
  • Do not use the power point longer than necessary when the vehicle is not running.
  • Do not leave devices plugged in overnight or when you park your vehicle for extended periods.
Power points may be in the following locations:
  • On the instrument panel.
  • On the rear of the center console.
  • Inside the luggage compartment.

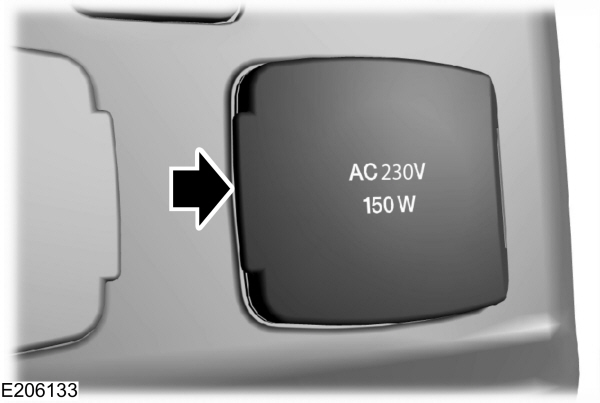

230 Volt AC Power Point (If Equipped)
WARNING   WARNING:  Do not keep electrical devices plugged in the power point whenever the device is not in use. Do not use any extension cord with the 230 volt AC power point, since it will defeat the safety protection design. Doing so may cause the power point to overload due to powering multiple devices that can reach beyond the 150 watt load limit and could result in fire or serious injury.

Note:   The power point turns off when you switch the ignition off.
You can use the power point for electric devices that require up to 150 watts. It is on the rear of the center console.
Image Shown Without DescriptionWhen the indicator light on the power point is:
  • On: The power point is working, the ignition is on and a device is plugged in.
  • Off: The power point is off, the ignition is off or no device is plugged in.
  • Flashing: The power point is in fault mode.
 The power outlet temporarily turns off power when in fault mode if the device exceeds the 150 watt limit. Unplug your device and switch the ignition off. Switch the ignition back on, but do not plug your device back in. Let the system cool off and switch the ignition off to reset the fault mode. Switch the ignition back on and make sure the indicator light remains on.
Do not use the power point for certain electric devices, including:
  • Cathode-ray, tube-type televisions.
  • Motor loads, such as vacuum cleaners, electric saws and other electric power tools or compressor-driven refrigerators.
  • Measuring devices, which process precise data, such as medical equipment or measuring equipment.
  • Other appliances requiring an extremely stable power supply such as microcomputer-controlled electric blankets or touch-sensor lamps.
