Under Hood Overview - 2.2L Diesel

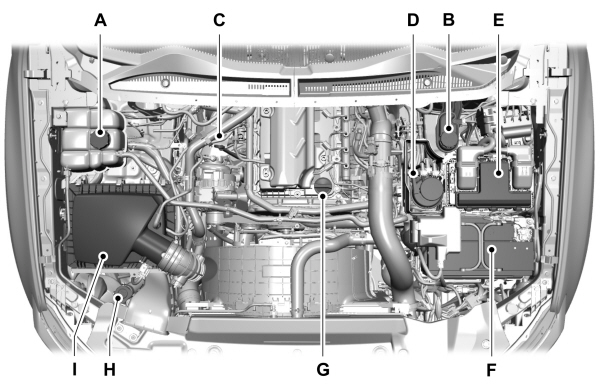

Right Hand Drive

Engine coolant reservoir cap. See Engine Coolant Check.
B

Brake and clutch fluid reservoir cap. See Brake Fluid Check.
C

Engine oil dipstick.See Engine Oil Dipstick - 2.2L Diesel.
D

Fuel filter water drain. See Draining the Fuel Filter Water Trap - 2.2L Diesel.
E

Engine compartment fuse box. See Fuses.
F

Battery. See Charging the 12V Battery.
G

Engine oil filler cap.See Engine Oil Check.
H

Washer fluid reservoir cap. See Washer Fluid Check.
I

Air Cleaner.

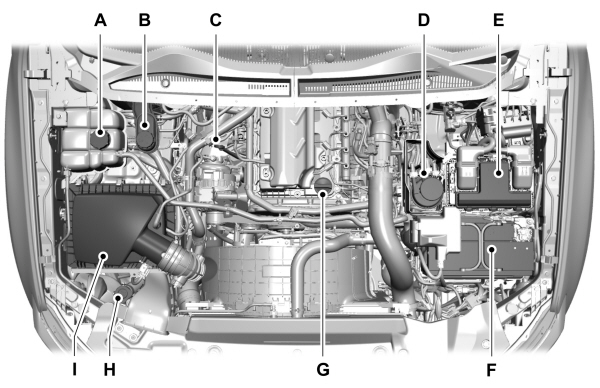

Left Hand Drive
