Fuse Specification Chart
Engine Compartment Fuse Box
WARNING:
Always disconnect the battery before servicing high current fuses.
WARNING:
To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs. |
The engine compartment fuse box has high-current fuses that protect your vehicle's main electrical systems from overloads. When you disconnect and reconnect the battery, you need to reset some features. See
Changing the 12V Battery.
Lift the release levers at the rear of the cover to remove it.
| Fuse or Relay Number | Fuse Rating | Protected Component |
|---|---|---|
| 1 | 15A1 | Rear wiper. |
| 2 | - | Starter motor solenoid relay. |
| 3 | 5A2 | Rain sensor. USB power point. |
| 4 | - | Front blower motor relay. |
| 5 | 20A1 | Auxiliary power point 3 - console rear. |
| 6 | - | Not used. |
| 7 | 20A2 | Powertrain control module. |
| 8 | 20A2 | cooler bypass control - vacuum solenoid valve (2.0L). cooler bypass (2.2L). Temperature mass air flow (2.2L). Volumetric control valve (2.2L). |
| 9 | - | Powertrain control module relay. |
| 10 | 20A1 | Auxiliary power point 1 - instrument panel. |
| 11 | 15A3 | Glow plug module (2.0L). |
| 12 | Turbo bypass valve actuator (2.0L). Wastegate actuator (2.0L). A/C compressor and control valve (2.0L). Coolant pump (2.0L). Fan drive. Glow plug module (2.2L). | |
| 13 | 15A3 | Not used (spare). |
| 14 | ||
| 15 | - | Run/Start relay. |
| 16 | 20A1 | Auxiliary power point 2 - instrument panel. |
| 17 | 20A1 | Auxiliary power point 4 - third row power point. |
| 18 | 10A2 | Fuel pump relay coil (2.2L). Not used (spare) (2.0L). |
| 19 | 10A2 | Electric power assisted steering. |
| 20 | 10A2 | Headlamp switch. Headlamp leveling motor. Headlamp control module. |
| 21 | 15A2 | Transmission control module. |
| 22 | 10A2 | Air conditioning compressor. |
| 23 | 7.5A2 | Parking aid rear view camera. Blind spot monitoring module - left and right. Adaptive speed control radar. Head up display. . Terrain management switch. |
| 24 | - | Not used. |
| 25 | 10A3 | Anti-lock brake system. |
| 26 | Not used (spare). | |
| 27 | - | Not used. |
| 28 | 10A2 | Powertrain control module. |
| 29 | 10A2 | Rear window washer pump. |
| 30 | - | Not used. |
| 31 | ||
| 32 | - | Water-in-fuel filter heater relay (2.0L). |
| Not used (2.2L). | ||
| 33 | - | Air conditioning clutch relay. |
| 34 | 20A2 | Steering column lock. |
| 35 | 15A2 | Transmission control module. |
| 36 | - | Not used. |
| 37 | 10A2 | Heated exterior mirror. |
| 38 | - | Not used. |
| 39 | - | Not used. |
| 40 | - | Fuel pump relay. |
| 41 | - | Horn relay. |
| 42 | - | Third row seat power fold relay. |
| 43 | - | Not used. |
| 44 | - | Not used. |
| 45 | - | Not used. |
| 46 | 10A3 | Not used (spare). |
| 47 | Brake pedal switch. | |
| 48 | 20A2 | Horn. |
| 49 | 5A2 | Water-in-fuel filter heater relay coil feed (2.0L). Not used (spare) (2.2L). |
| 50 | - | Not used. |
| 51 | - | Not used. |
| 52 | - | Not used. |
| 53 | - | Not used. |
| 54 | - | Not used. |
| 55 | - | Not used. |
| 86 | - | Rear blower motor relay. |
1M-type fuse.
2Micro fuse.
3Dual micro fuse.
Power Distribution Box - Bottom

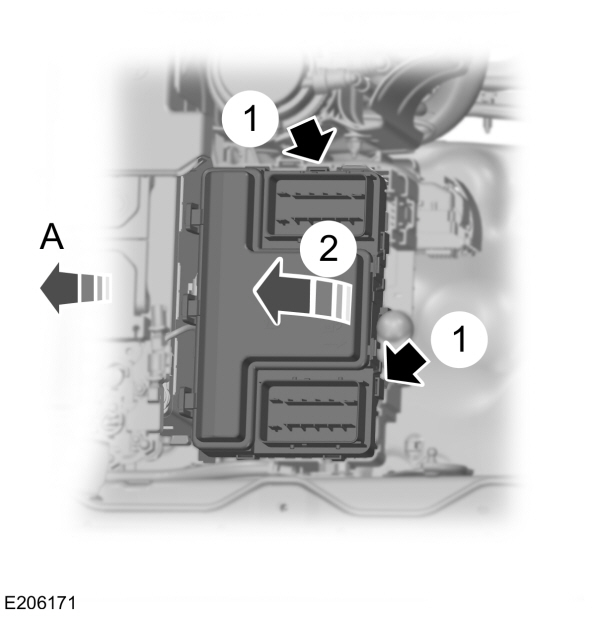

There are fuses on the bottom of the fuse box. To access the bottom of the fuse box, do the following:
A Toward the front side of the vehicle. |

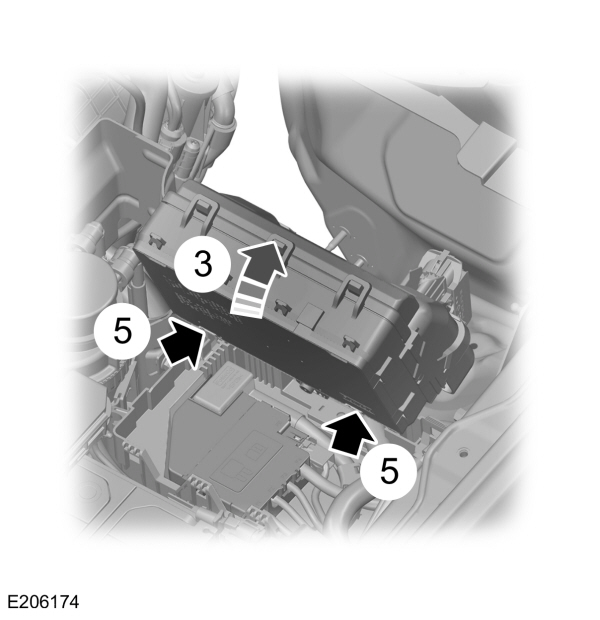

- Release the two latches, on both sides of the fuse box.
- Raise the rear side of the fuse box from the cradle.
- Move the fuse box toward the rear side of the engine compartment and rotate as shown in the graphics.
- Pivot the rear side of the fuse box to access the bottom side.
- Release the two latches to open the fuse cover.
| Fuse or Relay Number | Fuse Rating | Protected Component |
|---|---|---|
| 56 | 30A4 | Fuel pump control module. |
| 57 | - | Not used. |
| 58 | - | Not used. |
| 59 | - | Not used. |
| 60 | 40A5 | Water-in-fuel filter heater (2.0L). |
| - | Not used.(2.2L). | |
| 61 | - | Not used. |
| 62 | 50A5 | Body control module 1 - lighting. |
| 63 | - | Not used. |
| 64 | 20A4 | Trailer tow connector. |
| 65 | 20A 4 | Heated front seats. |
| 66 | - | Not used. |
| 67 | 50A5 | Body control module 2 - lighting. |
| 68 | 40A4 | Rear window defroster. |
| 69 | 30A4 | Anti-lock brake system valves. |
| 70 | 20A4 | Passenger power seat. |
| 71 | - | Not used. |
| 72 | 30A4 | Third row power fold seat. |
| 73 | 30A4 | Trailer module. |
| 74 | 20A4 | Driver power seat. |
| 75 | 25A4 | Rear blower motor. |
| 76 | - | Not used. |
| 77 | 25A4 | Four-wheel drive module. |
| 78 | 30A4 | Four-wheel drive module. |
| 79 | 40A5 | Blower motor. |
| 80 | - | Not used. |
| 81 | 40A4 | Inverter. |
| 82 | 60A5 | Anti-lock brake system pump. |
| 83 | 30A4 | Windshield wiper motor. |
| 84 | 30A4 | Starter motor solenoid. |
| 85 | 30A4 | Power liftgate module. |
| 87 | 40A5 | Trailer module. |
4M-type fuse.
5LPJ-type fuse.
Battery Mounted Fuse Link
| Fuse Number | Fuse Rating | Protected Component |
|---|---|---|
| 1 | 225A | Alternator (2.2L). |
| 300A | Alternator (2.0L). | |
| 2 | 125A | Electronic power assist steering. |

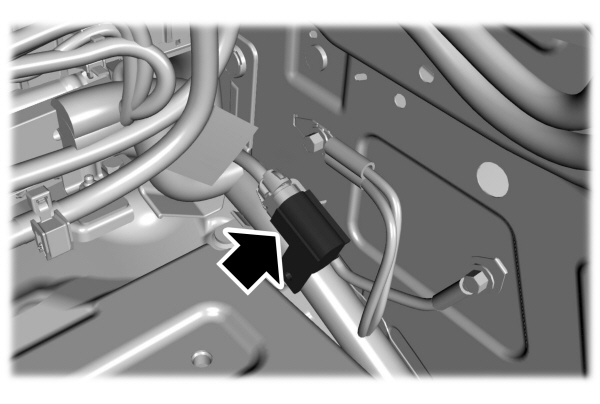

Battery Monitor Sensor Fuse
| Fuse Number | Fuse Rating | Protected Component |
|---|---|---|
| 1 | 3A6 | Battery monitor sensor. |
6ATO fuse.

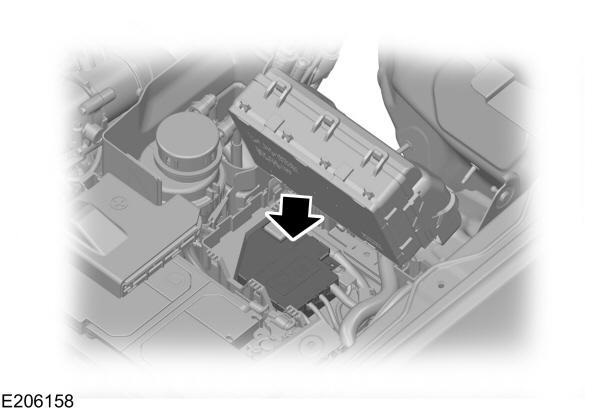

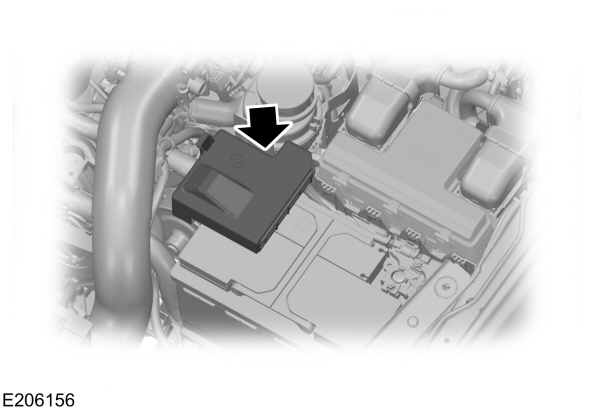

High Current Fuse Box
| Fuse Number | Fuse Rating | Protected Component |
|---|---|---|
| 1 | 70A | Glow plug module. |
| 2 | 125A | Body control module. |
| 3 | 50A | Body control module. |
| 4 | - | Busbar through to power distribution box. |
| 5 | - | Not used. |
Passenger Compartment Fuse Box
The fuse box is below and outermost of the steering column behind the access cover.
| Fuse or Relay Number | Fuse Rating | Protected Component |
|---|---|---|
| 1 | - | Not used. |
| 2 | 7.5A7 | Not used (spare). |
| 3 | 20A7 | Driver door latch. Fuel flap unlock relay. |
| 4 | 5A7 | Not used (spare). |
| 5 | 20A7 | Subwoofer amplifier. |
| 6 | 10A8 | Not used (spare). |
| 7 | ||
| 8 | 10A8 | Anti-theft alarm horn. |
| 9 | Not used (spare). | |
| 10 | 5A8 | Power liftgate module. Liftgate hands-free entry. |
| 11 | Interior motion sensor. | |
| 12 | 7.5A8 | Electronic control panel. Climate control module. Rear auxiliary module. |
| 13 | Instrument cluster. Steering column control module. Data link connector. | |
| 14 | 10A8 | Not used (spare). |
| 15 | Data link module. Data link connector. II | |
| 16 | 15A7 | Not used (spare). |
| 17 | 5A8 | Battery backup sounder. |
| 18 | Ignition switch. Key interlock. Push button start. | |
| 19 | 7.5A8 | Not used (spare). |
| 20 | ||
| 21 | 5A8 | Humidity and in car temperature sensor. |
| 22 | Not used (spare). | |
| 23 | 10A7 | Inverter. Door lock switch. Moonroof. Driver door window switch (one-touch up/down all doors). |
| 24 | 20A7 | Central locking system. |
| 25 | 30A7 | Driver door control module (power window - one-touch up/down all doors). Driver door power window switch memory (one-touch up/down driver only). |
| 26 | 30A7 | Passenger door control module (power window - one touch up/down). |
| 27 | 30A7 | Moonroof. |
| 28 | 20A7 | Not used (spare). |
| 29 | 30A7 | Left rear door control module (power window - one touch up/down). |
| 30 | 30A7 | Right rear door control module (power window - one touch up/down). |
| 31 | 15A7 | SYNC III. |
| 32 | 10A7 | Radio transceiver module. Door entry remote. |
| 33 | 20A7 | Audio unit. |
| 34 | 30A7 | Run/Start relay. |
| 35 | 5A7 | Restraints control module. |
| 36 | 15A7 | Auto-dimming interior mirror. Mirror adjustment control. |
| 37 | 20A7 | Transfer case control module. |
| 38 | 30A9 | Power windows (one-touch up/down - driver only). |
7Micro fuse.
8Dual micro fuse.
9PTC fuse.
