If you get a flat tire when driving, do not apply the brake heavily. Instead, gradually decrease your speed, hold the steering wheel firmly and slowly move to a safe place on the side of the road.
Have the flat serviced by an authorized dealer to prevent damage to the system sensors.  See   Tire Pressure Monitoring System Precautions.  Replace the spare tire with a road tire as soon as possible. During repairing or replacing the flat tire, have the authorized dealer inspect the system sensor for damage.
Note:   The use of tire sealant could damage your tire pressure monitoring system and should only be used in roadside emergencies.
Note:   The tire pressure monitoring system indicator light illuminates when the spare tire is in use. To restore the full function of the monitoring system, all road wheels equipped with tire pressure monitoring sensors must be mounted on this vehicle.
Dissimilar Spare Wheel and Tire Assembly Information
WARNING   WARNING:  Failure to follow these guidelines could result in an increased risk of loss of vehicle control, injury or death.
WARNING   WARNING:  If you are not sure what type of spare wheel your vehicle has, do not exceed 80 km/h.

If the spare wheel is different from the other fitted road wheels, it may have a warning label with the appropriate maximum speed limit. Drive cautiously when using a dissimilar spare wheel and tire assembly.
Full-size Dissimilar Spare Wheel With a Label on the Wheel
The label on the wheel states: THIS WHEEL AND TIRE ASSEMBLY FOR TEMPORARY USE ONLY.
A dissimilar spare wheel and tire is for temporary use only. Drive the shortest distance possible and have the damaged road wheel and tire repaired or replaced as soon as possible. If the dissimilar spare wheel or tire is damaged, it must be replaced.
If you use a dissimilar spare wheel and tire assembly, this can lead to impairment of the following:
  • Handling, stability and braking performance.
  • Comfort and noise.
  • Ground clearance and parking at curbs.
  • Winter weather driving capability.
  • Wet weather driving capability.
  • All wheel driving capability.
When driving with this type of a dissimilar spare wheel:
  • Do not exceed the maximum speed as shown on the label.
  • Do not load your vehicle beyond maximum vehicle load rating listed on the safety compliance label.
  • Do not tow a trailer.
  • Do not use snow chains on the end of your vehicle with the dissimilar spare.
  • Do not use more than one dissimilar spare tire at a time.
  • Do not use a commercial car wash.
Full-size Dissimilar Spare Wheel Without a Label on the Wheel
You can replace the existing road wheel with the spare and continue to drive in the normal manner.
Tire Change Procedure
WARNING   WARNING:  To help prevent your vehicle from moving when changing a wheel, shift the transmission into park (P), set the parking brake and use an appropriate block or wheel chock to secure the wheel diagonally opposite to the wheel being changed. For example, when changing the front left wheel, place an appropriate block or wheel chock on the right rear wheel.
WARNING   WARNING:  The jack supplied with this vehicle is only intended for changing a flat tire in an emergency. Do not attempt to do any other work on your vehicle when it is supported by the jack, as your vehicle could slip off the jack. Failure to follow this instruction could result in personal injury or death.
WARNING   WARNING:  Do not attempt to change a tire on the side of the vehicle close to moving traffic. Pull far enough off the road to not obstruct the flow of traffic and avoid the danger of being hit when operating the jack or changing the wheel.
WARNING   WARNING:  Do not attempt to change a tire on the side of the vehicle close to moving traffic. Pull far enough off the road to not obstruct the flow of traffic and avoid the danger of being hit when operating the jack or changing the wheel.
WARNING   WARNING:  Only use the jack provided as original equipment with your vehicle.
WARNING   WARNING:  Do not get under a vehicle that is supported by a jack.
WARNING   WARNING:  No person should place any portion of their body under a vehicle that is supported by a jack.
WARNING   WARNING:  The jack supplied with this vehicle is only intended for changing a flat tire in an emergency. Do not attempt to do any other work on your vehicle when it is supported by the jack, as your vehicle could slip off the jack. Failure to follow this instruction could result in personal injury or death.
WARNING   WARNING:  Ensure screwthread is adequately lubricated before use.
WARNING   WARNING:  The jack should be used on level firm ground wherever possible.
WARNING   WARNING:  Never place anything between the vehicle jack and the ground.
WARNING   WARNING:  Never place anything between the vehicle jack and your vehicle.
WARNING   WARNING:  If your vehicle has a manual transmission, shift into first or reverse (R) gear, apply the parking brake, and switch the vehicle off.
WARNING   WARNING:  If your vehicle has an automatic transmission, shift into park (P), apply the parking brake, and switch the vehicle off.
WARNING   WARNING:  It is recommended that the wheels of the vehicle be chocked, and that no person should remain in a vehicle that is being jacked.
WARNING   WARNING:  Switch off the running boards before jacking or placing any object under your vehicle. Failure to follow this instruction may result in personal injury or property damage.

  1. Park the vehicle on a level, firm surface and activate the hazard flashers.
  1. Apply parking brake, turn the engine off and set up a warning triangle.
Blocking a Wheel
  1. Block the wheel diagonally opposite the flat tire. For example, if the left front tire is flat, block the right rear wheel.
Note:   Passengers should not remain in the vehicle when the vehicle is being jacked.
Removing the Vehicle Jack and Tool Bag
The jack, wheel brace and jack handle are located in the cab.
Note:   Not all cab configurations are available in all markets.
Single Cab
Vehicle Jack Access - Single Cab
  1. Fold the left-hand side seatback forward.
  1. Remove the locking strap and remove the tools.
Jack Location
  1. Fold the right-hand side seatback forward.
  1. Loosen the jack, remove the bolt and remove the jack.
Super Cab
Folding the Seat
  1. Pull the release strap.
  1. Remove the rear seats.
Accessing the Tool Box
  1. Remove the cover.
Removing the Vehicle Jack
  1. Remove the bolt and turn the lead screw on the end counterclockwise to unwind.
  1. Remove the jack.
  1. Remove the tools.

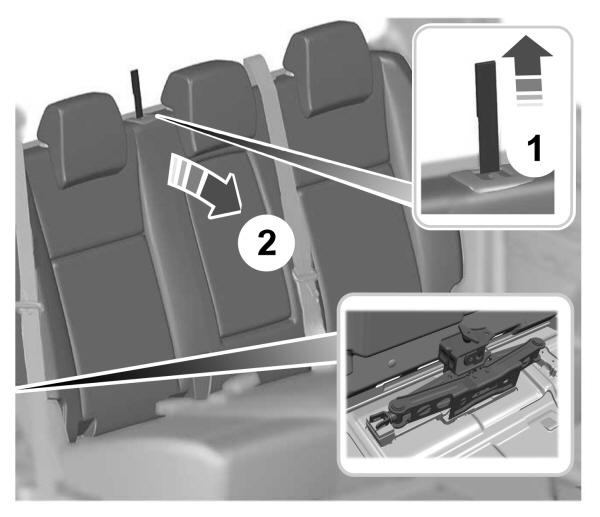

Double Cab
Image Shown Without Description
  1. Lift the release strap.
  1. Lower the seat back.
  1. Remove the bolt.
  1. Lift the jack from the foam block and remove the jack from your vehicle.

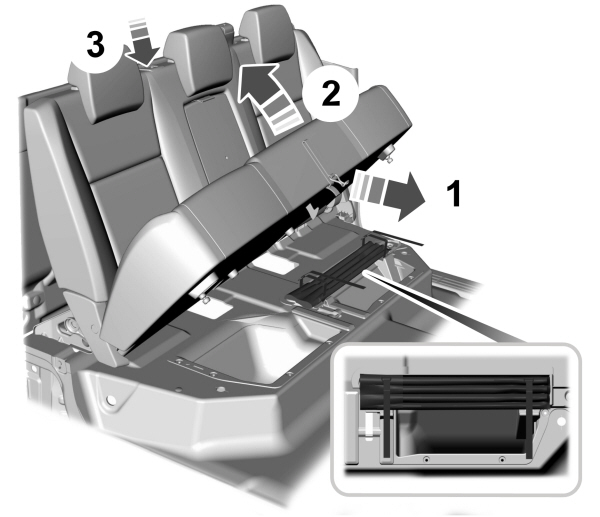

Tools Location
  1. Pull the release strap out.
  1. Lift the seat bottom up.
  1. Use the tether strap to secure the seat cushion.
  1. Locate tool bag and remove the securing straps.
Removing the Spare Tire
WARNING   WARNING:  If you are not sure what type of spare wheel your vehicle has, do not exceed 80 km/h.

Image Shown Without Description

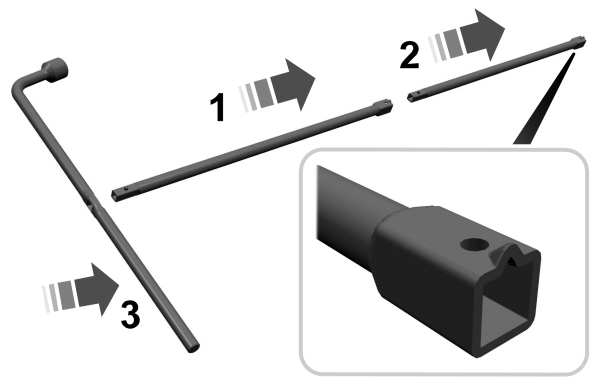

  1. Assemble the handle.
Image Shown Without Description

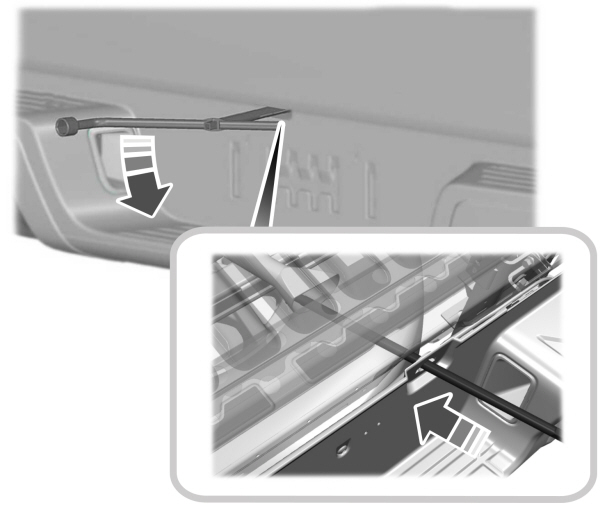

  1. Insert the jack handle into the guide hole. Turn counterclockwise until the wheel rests on the ground, and there is slack in the cable.
Image Shown Without Description

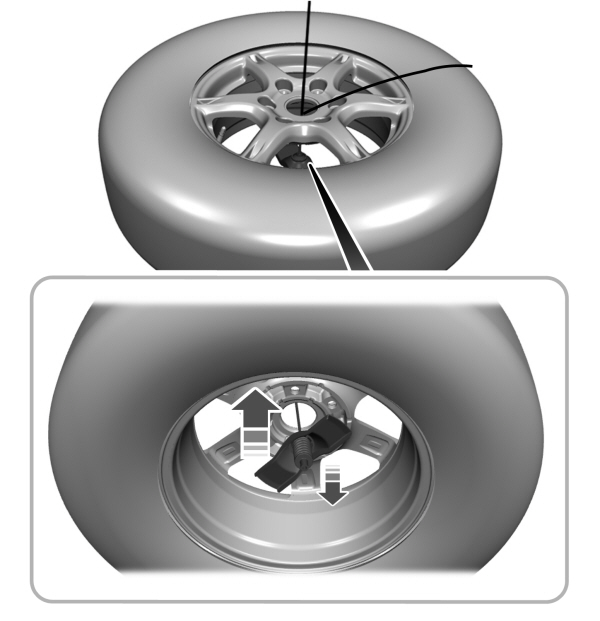

  1. Pass the bracket and cable through the wheel opening.
Image Shown Without Description
  1. Vehicles with steel wheels, remove the center cap by pulling off or using an object to pry the cover off. Loosen each wheel lug nut one-half turn counterclockwise, but do not remove them until the wheel is raised off the ground.
Image Shown Without Description
  1. Vehicles with aluminum wheels, loosen each wheel lug nut one-half turn counterclockwise, but do not remove them until the wheel is raised off the ground.
Note:   If the spare wheel is not the same type and size as your vehicle road wheel, drive the shortest distance possible.
Note:   Do not fit more than one spare wheel on your vehicle at any one time.
Note:   Using a dissimilar spare wheel or tire at any one wheel location can compromise the handling, stability and braking performance, comfort and noise.
Note:   When driving with a spare tire, do not switch on four-wheel drive mode unless you need to get your vehicle unstuck.
Note:   The spare wheel is located underneath the rear of the vehicle.
Note:   Do not use power tools on the spare wheel winch input drive.
Removing a Road Wheel
WARNING   WARNING:  Only use the specified jacking points. If you use any other locations you could damage vehicle components, such as brake lines.

Jack Warning
Note:   No maintenance or additional lubrication of your jack is required over the service life of your vehicle.
Note:   Jack at the specified locations to avoid damage to the vehicle.
Note:   Only use the jack on the specified jacking points and as close to the affected wheel as possible.

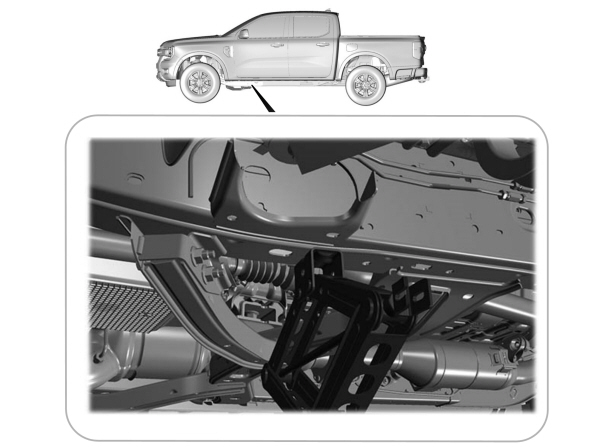

Front Jacking Points
Image Shown Without Description

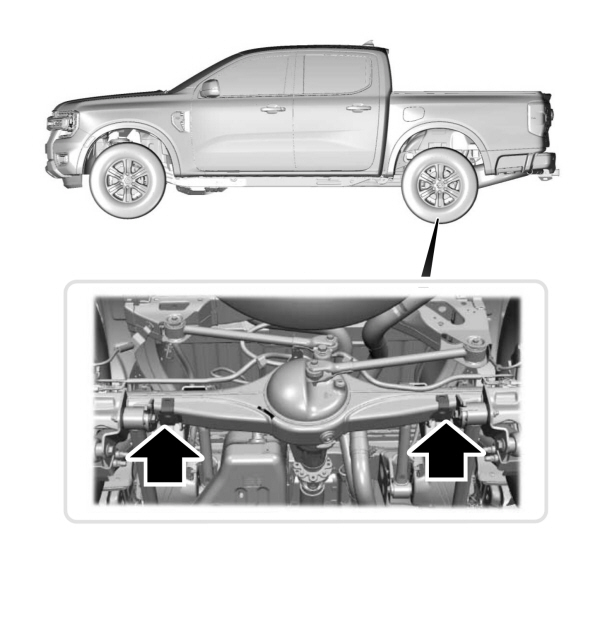

Rear Jacking Points
Image Shown Without Description

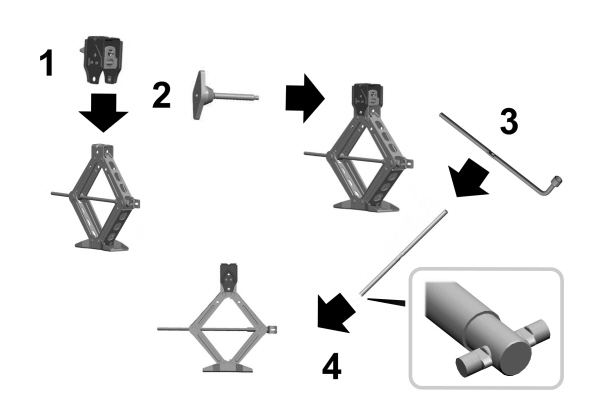

When you are jacking a flat front tire, connect the extension block to the jack loadrest using the wing bolt as shown. Connect the jack handle to the jack, and use the lug nut wrench to operate the jack.
Image Shown Without Description
Note:   Do not use the extension block when you are changing a flat tire on the rear of the vehicle. Assemble the jack handle using the extensions as shown to operate the jack when placing under the rear axle.
  1. Place the vehicle jack at the jacking point next to the tire you are changing.
  1. Assemble the jack handle, including the required extension tubes depending on the position you are jacking, and turn the jack handle clockwise until the wheel is completely off the ground.
Note:   When changing the rear flat tire, connect all the handles together to extend the jack handle.
Image Shown Without Description
  1. Raise your vehicle until the tire is clear of the ground.
  1. Use the locking wheel nut key to loosen the locking wheel nut.
  1. Remove the lug nuts and the road wheel.
Installing a Road Wheel
WARNING   WARNING:  Use only approved wheel and tire sizes. Using other sizes could damage your vehicle.
WARNING   WARNING:  Do not fit run flat tires on vehicles that were not originally fitted with them. See an authorized dealer for more details about compatibility.
WARNING   WARNING:  Make sure there is no grease or oil on the threads or the surface between the wheel studs and the wheel nuts. This can cause the wheel nuts to loosen while driving.
WARNING   WARNING:  Do not install alloy wheels using wheel nuts designed for use with steel wheels.
WARNING   WARNING:  Have the wheel nuts checked for tightness and the tire pressure checked as soon as possible.

Note:   Make sure the wheel and hub contact surfaces are free from foreign matter.
Note:   Make sure the cones on the lug nuts are against the wheel.
  1. Install the wheel.
  1. Install the lug nuts and finger tighten.
  1. Install the locking lug nut key.
Tightening the Wheel Locking Nuts
  1. Lower your vehicle and remove the vehicle jack.
  1. Fully tighten all of the lug nuts in the sequence shown.   See   Wheel Nuts.
Stowing the Flat or Spare Tire
  1. Lay the tire on the ground, near the rear of the vehicle, with the valve stem side facing up.
  1. Slide the wheel partially under the vehicle and install the retainer through the wheel center. If equipped, you may have to remove the wheel center cap prior to pushing the retainer through the center of the wheel. To remove the center cap, press it off with the jack tool from the inner side of the wheel. Pull on the cable to align the components at the end of the cable.
  1. Insert the handle into the guide hole and engage the winch.
  1. Turn the swivel wrench clockwise until the tire is raised to its stowed position underneath the vehicle. The wrench becomes harder to turn and the spare tire winch ratchets or slips when the tire is raised to its maximum tightness. A clicking sound is heard from the winch indicating the tire is properly stowed.
Note:   Before stowing the tire in its final position make sure the tether cable is not pinched between the tire and the frame crossmember and it can be moved freely.
Note:   Three clicks should be sufficient for spare wheel stowage.
  1. Carefully place all tools back to the tool kit bag.
  1. Reinstall the tool kit bag in the original position.
  1. Reinstall the jack properly on the bracket and secure the wing nut.
  1. Unblock the wheel. Place the warning triangle back in the vehicle.
Note:   Do not use power tools on the spare wheel winch input drive.
Note:   Only use the spare tire carrier to stow the tire and wheel combination provided with your vehicle. Other tire and wheel combinations can cause the tire carrier to fail.
