THIS TSB HAS BEEN SUPERSEDED OR DEACTIVATED

This bulletin supersedes 22-2443.

Model:

Ford

2020-2022 F-Super Duty

Summary

This article supersedes TSB 22-2443 to update the Service Procedure.

Issue: Some 2020-2022 F-Super Duty vehicles may exhibit a condition where the engine will not turn off and/or have various electrical symptoms including a dead battery, horn stays on and no crank/no start. The vehicle may also have an illuminated anti-lock brake system (ABS) indicator with diagnostic trouble codes (DTCs) C0020 and U3003 in the ABS module. This may be a result of water/moisture intrusion into the battery junction box (BJB). The BJB is located under the hood of the vehicle. This water/moisture intrusion may be related to the BJB cover not installed completely or broken cover tabs/locking fingers allowing water/moisture into the BJB. To correct the condition, follow the Service Procedure to inspect for water/moisture intrusion into the BJB and replace the BJB and cover if water/moisture intrusion is found.

Action: Follow the Service Procedure to correct the condition on vehicles that meet all of the following criteria:

• 2020-2022 F-Super Duty

• At least one of the following symptoms:
- Various electrical concerns including engine will not turn off

- Dead battery

- Horn stays on

- No crank/no start

- Illuminated ABS indicator with DTCs C0020 and U3003

Parts

Service Part Number	Package Order Quantity	Description
14A06814A068	1	Power Distribution Box / Battery Junction Box - Refer To The Parts Catalog For The VIN Specific Application
LC3Z-14A003-DLC3Z-14A003-D	1	Battery Junction Box Cover

Warranty Status: Eligible under provisions of New Vehicle Limited Warranty (NVLW)/Service Part Warranty (SPW)/Service Part New Vehicle (SPNV)/Extended Service Plan (ESP) coverage. Limits/policies/prior approvals are not altered by a TSB. NVLW/SPW/SPNV/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.

Labor Times

Description	Operation No.	Time
2020-2022 F-Super Duty: Inspect And Replace The BJB (Do Not Use With Any Other Labor Operations Outside Of This Article)	232133A	0.6 Hrs.

Repair/Claim Coding

Causal Part:	14A068
Condition Code:	42

1. Visually inspect the BJB for signs of water/moisture intrusion. (Figure 1-2) Are there signs of water/moisture intrusion into the BJB and/or broken cover tabs/locking fingers?

(1). Yes - proceed to Step 2.

(2). No - this article does not apply. Refer to Workshop Manual (WSM) for symptom based diagnostics.

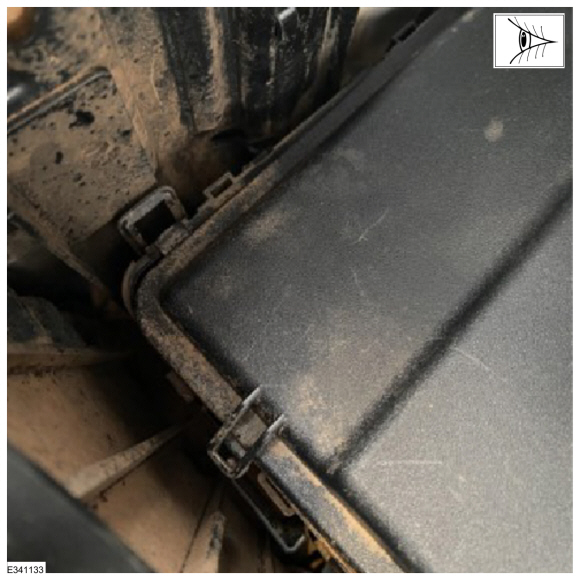

Figure 1 - Example of moisture intrusion with BJB cover on

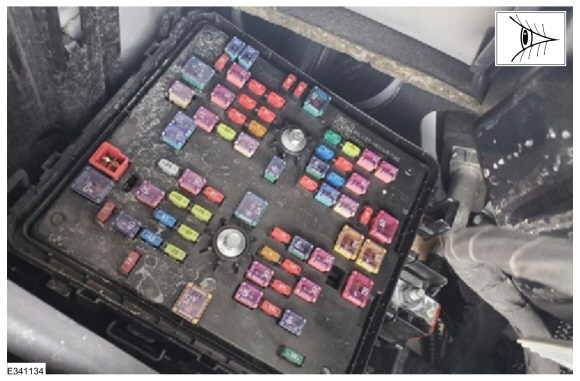

Figure 2 - Example of moisture intrusion with BJB cover off

2. Replace the BJB assembly and cover.

(1). Remove the battery and battery tray. Refer to WSM, Section 414-01.

(2). Remove the BJB cover.

(3). Loosen the 2 BJB connector bolts and remove the battery power cable nut. Disconnect the battery power cable from the BJB.

(4). Release the BJB from the two locking tabs on each side of the BJB.

(5). Lift the BJB to allow access to both BJB connectors. Disconnect both connectors and remove the BJB.

(6). Remove the cover from the new BJB and connect both connectors to the new BJB.

(7). Install the new BJB into both locking tabs.

(8). Attach the battery power cable and tighten the battery power cable nut to 10.5 Nm (93 lb-in). Tighten the connector bolts to 5.4 Nm (48 lb-in).

(9). Install the new BJB cover making sure the cover tabs/locking fingers are installed correctly. (Figures 3-6)

(10). Install the battery tray and battery back into the vehicle. Refer to WSM, Section 414-01.

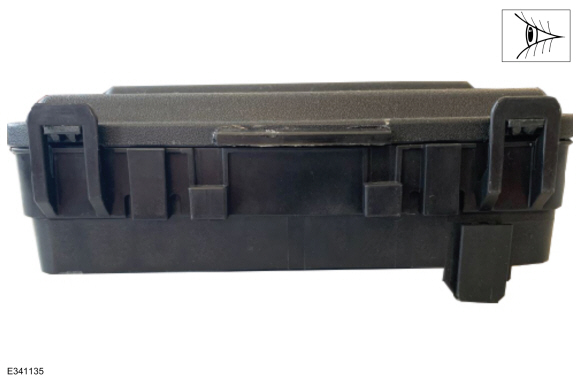

Figure 3 - Correct cover installation

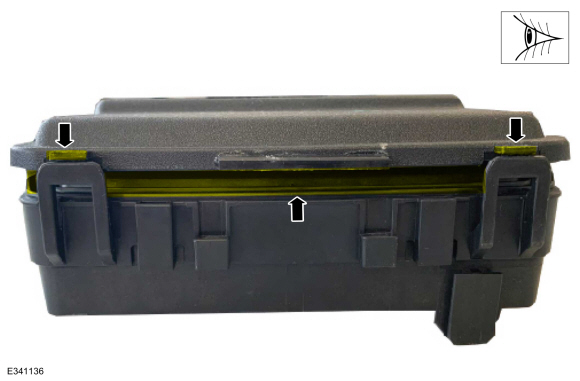

Figure 4 - Incorrect cover installation

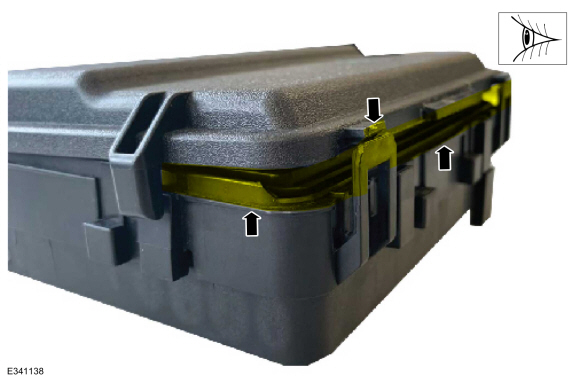

Figure 5 - Incorrect cover installation

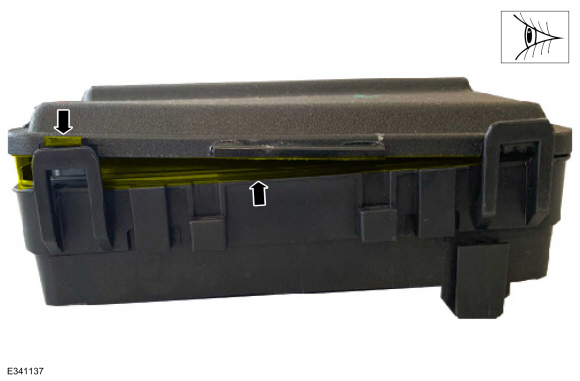

Figure 6 - Incorrect cover installation
