  • MIL ON WITH DTCS - P0351, P0352, P0353, P0354, P0355, AND/OR P0356 - BUILT ON OR BEFORE 3/1/2008
Publication Date: April 24, 2013

FORD:
2006-2008 Fusion
2008 Taurus
2007-2008 Edge
LINCOLN:
2006 Zephyr
2007-2008 MKZ, MKX
MERCURY:
2006-2008 Milan
2008 Sable

This article supersedes TSB 12-8-17 to update the Service Labor Time Standards.

ISSUE:

Some 2006-2008 Fusion, Milan, 2006 Zephyr, 2007-2008 MKZ, Edge, MKX, and 2008 Taurus, Taurus X and Sable vehicles built on or before 3/1/2008 equipped with a 3.0L or 3.5L engine may exhibit a malfunction indicator lamp (MIL) on with diagnostic trouble codes (DTCs) P0351, P0352, P0353, P0354, P0355 and/or P0356 present in the powertrain control module (PCM) with one or more damaged coil-on-plug(s).

ACTION:

Follow the Service Procedure Steps to correct the condition.

SERVICE PROCEDURE

  1. Using IDS scan tool, retrieve continuous memory DTCs. Are DTCs P035X present in the PCM?
    1. No - This article does not apply. Refer to the Powertrain Control/Emissions Diagnosis (PC/ED) manual for normal diagnostics.
    2. Yes - Proceed to Step 2.
  2. Remove all ignition coil-on-plugs. Refer to Workshop Manual (WSM), Section 303-07.
  3. Inspect ignition coil-on-plugs for cracks and/or signs of heat related damage. Refer to Figures 1-3 at the end of this procedure for examples of damage. Do any ignition coil-on-plugs show signs of damage?
    1. Yes - Proceed to Step 4.
    2. No - Do not continue with this article. Refer to the PC/ED manual for normal diagnostics.
  4. Replace PCM. Refer to Workshop Manual (WSM), Section 303-14A. Proceed to Step 5.
  5. Replace all six (6) spark plugs and ignition coil-on-plugs. Refer to WSM, Section 303-07.

PART NUMBER PART NAME
BA5Z-12259-A 3.5L Coil/Spark Plug/Intake Gasket Kit (1 per vehicle)
BL8Z-12259-A 3.0L Coil/Spark Plug/Intake Gasket Kit (1 per vehicle)
12A650 PCM (Part Number Requires Catalog Lookup)

WARRANTY STATUS:

Eligible Under Provisions Of New Vehicle Limited Warranty Coverage And Emissions Warranty Coverage
Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.

OPERATION DESCRIPTION TIME
130417A2007-2008 Edge, MKX 3.5L: Check DTCs, Inspect And Replace All Ignition Coil On Plugs, Spark Plugs And The PCM (Do Not Use With Any Other Labor Operations Except Labor Operation PRIOR If Required)1.8 Hrs.
130417A2007-2008 MKZ 3.5L: Check DTCs, Inspect And Replace All Ignition Coil On Plugs, Spark Plugs And The PCM (Do Not Use With Any Other Labor Operations Except Labor Operation PRIOR If Required)2.1 Hrs.
130417A2008 Taurus, Sable And Taurus X 3.5L: Check DTCs, Inspect And Replace All Ignition Coil On Plugs, Spark Plugs And The PCM (Do Not Use With Any Other Labor Operations Except Labor Operation PRIOR If Required)2.2 Hrs.
130417A2006-2008 Fusion, Milan, 2006 Zephyr 3.0L: Check DTCs, Inspect And Replace All Ignition Coil On Plugs, Spark Plugs And The PCM (Do Not Use With Any Other Labor Operations Except Labor Operation PRIOR If Required)2.4 Hrs.

DEALER CODING

BASIC PART NO. CONDITION CODE
12A650 42

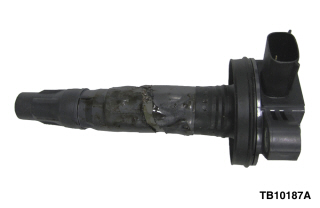

Figure 1 - Article 13-4-17

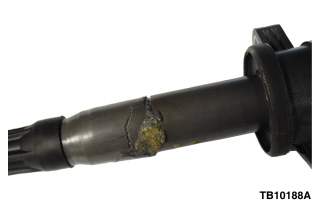

Figure 2 - Article 13-4-17

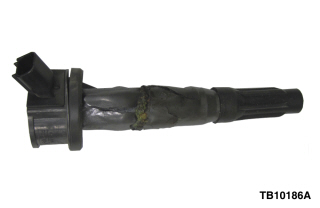

Figure 3 - Article 13-4-17
